AXI4-Stream to/from AXI Memory Map – 2 DMA Channels - Control by SGL Descriptors

Overview

The DB-DMAC-MC2-DL-MM2S-S2MM Verilog RTL IP Core is a Multi-Channel Scatter-Gather DMA Controller that transfers data between AXI4 Memory Map and AXI4-Stream Interfaces.

Control is managed by Descriptors initialized by the Control/Status Register Interface, with the Descriptors read in from memory via the AXI4 MM Read Channel and processed with the DMA data transfer information.

The vendor offers two version releases of the DB-DMAC-MC2-DL-MM2S-S2MM:

High AXI bandwidth throughput version with internal control plane that keeps the data interfaces transferring data at the full AXI Interface capabilities.
Nominal bandwidth throughput version requiring less control plane VLSI resources at a lower licensing cost

Key Features

2 Dedicated DMA Channels, 1 each for data transfers for the following:
- MM2S: AXI4-Memory Map Read Data to AXI4-Stream Write Data
- S2MM: AXI4-Stream Read Data to AXI4-Memory Map Write Data
Command and Status via Scatter Gather List (SGL) –
- processing of linked-list Descriptor nodes
- supports non-contiguous data block transfers to a contiguous segment of memory and vice versa
Arbiter – Round Robin:
- MM2S & S2MM request of the AXI4 Master Read Channel to read their Descriptors
- MM2S request of the AXI4 Master Read Channel to read MM data
MM2S & S2MM DMA Controllers:
- Read & Write DMA Controller Engines
- Data FIFO - Parameters for width and depth
- Unaligned data transfers with byte realignment & using byte strobes
- Releases versions supporting high or nominal AXI bandwidth throughput, with tradeoff in control plane VLSI resources and licensing cost
Interrupt Controller – Signaling DMA Status - Transfer Done & Diagnostics
Individual Interface Data Widths: 8 / 16 / 32 / 64 / 128 / 256 / 512 / 1024.
Programmable Data Burst Capability: 1, 4, 8, 16 (fixed) and 1 – 256 (AXI4)
4 KB boundary crossing detection & resizing of AXI transaction
Compliance with AMBA Specifications:
- AXI4 Protocol Specification (Memory Map Read/Write Channels)
- AXI4-Stream Protocol Specification
Fully synchronous, synthesizable Verilog RTL core, with rising-edge clocking, no gated clocks, and no internal tri-states, for easy integration into FPGA or ASIC design flows.

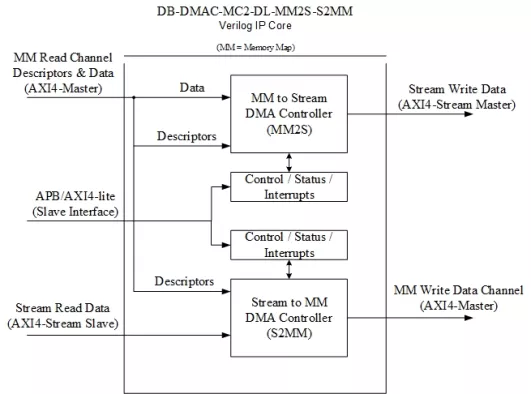

Block Diagram

Deliverables

Verilog RTL Source or technology-specific netlist.
Comprehensive testbench suite with expected results.
Synthesis scripts.
Installation & Implementation Guide.
Technical Reference Manual.

Technical Specifications

Maturity

Successful in Customer Implementations

Availability

Immediately
