Chroma Resampler

Overview

Key Features

• Chroma Sub SamplingInput format: 4:4:4
• Output format: 4:2:0
  • Algorithm: Averaging
  • Image size resolution can be from QCIF to Full HD
  • 8-bit per pixel per color
  • 3 color plane parallel processing
  • Chroma Up SamplingInput format: 4:2:2
• Output format: 4:4:4
  • Algorithm: Replicate
  • Image size resolution can be from QCIF to Full HD
  • 8-bit per pixel per color
  • 3 color plane in parallel processing

Benefits

• Simple design makes it easier to integrate in many FPGA families

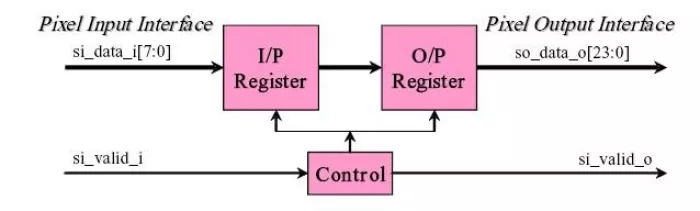

Block Diagram

Applications

• Video and image processing applications in Aerospace and Defense, Automotive, Broadcast, Consumer, Industrial and Medical applications

Deliverables

• ...

Technical Specifications
