Converts pixels in the YCbCr colour-space from 30-bit 4:4:4 format to 20-bit 4:2:2 and vice-versa.
Features a fully pipelined design with simple flow-control and 1 x pixel/clock output.
Chroma Re-sampler
Overview
Key Features
- Conversion of pixels between 4:4:4 and 4:2:2 formats
- Supports 10-bit luma and chroma samples
- Use in conjunction with our colour-space converter for RGB formats
- Features vsync/hsync sideband flags
- Fully pipelined architecture
- Output one pixel per clock
Benefits
- Technology independent soft IP Core
- Suitable for FPGA, SoC and ASIC
- Supplied as human-readable source code
- One-time license fee with unlimited use
- Field tested and market proven
- Any custom modification on request

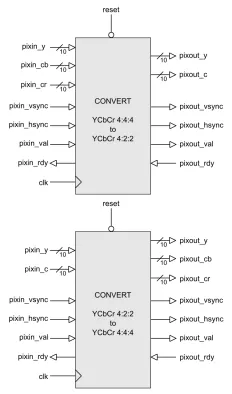

Block Diagram
Deliverables
- VHDL source-code (or Verilog on request)
- Simulation test bench
- Examples and scripts
- Full pdf datasheet
- One-to-one technical support
- One years warranty and maintenance
Technical Specifications
Foundry, Node
All
Availability
Immediate
