Bandgap Voltage Reference, 0.45 V Output

Overview

The Bandgap Voltage Reference IP is a 1.0 V input, low PPM/°C, 0.45 V reference voltage output implemented in the TSMC 3nm N3P CMOS process technology. Its low Temperature Coefficient, compact area, and wide operating temperature range make it especially suitable for use as a precision voltage reference for low voltage subsystems implemented in analog, digital, mixed-signal and RF ASICs and SoCs.

Key Features

  • TSMC 3nm FinFET process
  • Input voltage: 1.0 V +/-10%
  • Output voltage: 0.45 V
  • Output voltage variation: < 5 mV at 0°C to 100°C
  • PSRR: > 40 dB @ DC
  • Low temperature coefficient (ppm/°C)
  • Power consumption: ~ 1 mW
  • Compact area
  • Temperature range: -40°C to 125°C

Block Diagram

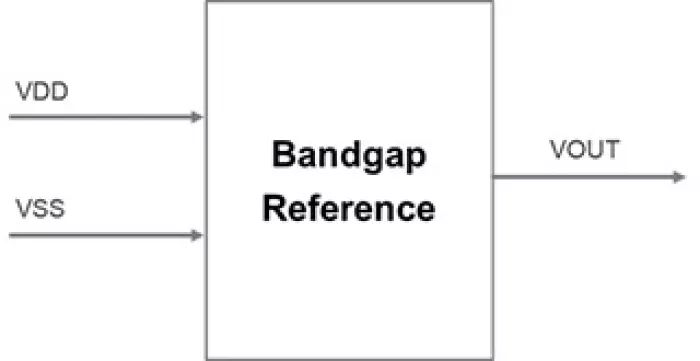

Bandgap Voltage Reference, 0.45 V Output Block Diagram

Deliverables

  • SPICE Netlist and OA Schematics
  • GDSII and LEF
  • Behavioral Model
  • IP Datasheet
  • User’s Guide
  • Integration Guide

Technical Specifications

Foundry, Node
TSMC, 3nm
Maturity
Silicon Proven
Availability
Now
×
