AMBA AHB Bus to SDRAM Controller

Key Features

• SDRAM controller interfaces directly with AHB Bus and user interface.
• Dual write buffer for simultaneous write posting and SDRAM access.
• Dedicated read buffer with data width matching.
• Early burst termination and CPU master busy on the AHB bus are supported.
• Supports AHB bus data width of 8, 16 and 32 bits.
• Zero wait state burst data transfer on both AHB interface and SDRAM.
• Supports industrial standard SDRAM from 64Mbit to 256Mbit device sizes.
• Pipeline access allows continuous data transfer without wasted cycle.
• Fast page access on row address matching.
• Independent row address matching for each of the 4 SDRAM banks.
• Programmable SDRAM access timing parameters.
• Automatic refresh generation with programmable refresh intervals.
• Optimized for ASIC and FPGA implementations.
• Differentiating Features
  • Multi port input.
  • Mobile DDR.
  • Multiple clock domain for user ports.
  • Multiple SoC and FPGA standard bus interface support (e.g. AHB-Lite, Avalon, PowerPc, Wishbone, SH4).
  • Different data with matching.

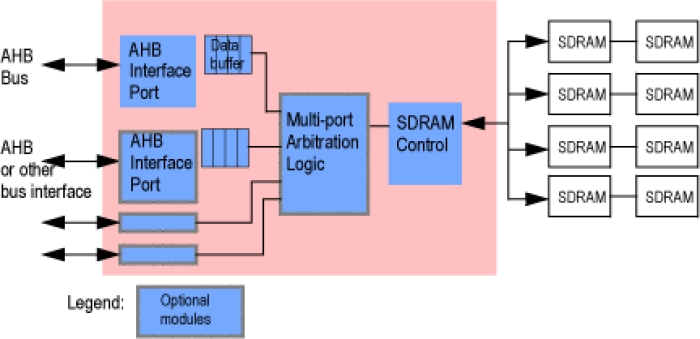

Block Diagram
