32-Bit & 64-Bit High Performance Processor - 6-Stage Pipeline, Single-issue

Overview

600 Series processors include four different classes: N600 (32 bit), U600 (32 bit + MMU), NX600 (64 bit) and UX600 (64 bit + MMU). With MMU, UX600 supports heavyload operating systems such as Linux. 600 Series can be applied to edge computing, data center, networking, etc.

Key Features

600 Series Single Core Features

  • RISC-V RV32 IMACFDBPKVZfh/Zcxlcz and RV64 IMACFDPBKVZfh/Zc ISA supported
  • Dual Issue, in-order 6 stage Harvard Pipeline
  • 64-bit AXI system bus, configurable 32-bit AHB-Lite slave port
  • Double, Single and Half-Precision floating point
  • Configurable SIMD DSP Extension
  • Full Vector Extension with 128-b VLEN
  • Configurable ILM/DLM (Instruction Local Memory) with ECC
  • Configurable ICachewith ECC
  • Configurable DCache with ECC
  • Configurable MMU supported (SV32/SV39/SV48)
  • PMP and TEE supported to meet the system security requirement
  • Full standard debug function with JTAG and cJTAG
  • Full standard RISC-V toolchain with Linux\Windows IDE supported

600 series SMP Multi Core Features

  • Dual-mode feature supported (Application Processor mode and Real-time Processor mode)
  • Up to 16 SMP cores in one Cluster
  • SoC Connectivity
  • Configurable Cluster Memory Port(64/128/256/512-bit)
  • Cluster Peripheral Ports support 32-bit AHB-Lite protocol
  • Up to 16 IOCP (I/O Coherent Port) Ports supported
  • Support Hardware Data Prefetching mechanism
  • Cluster Cache
  • Configurable Cluster Cache size
  • Configurable Cacheline size(64Bytes)
  • Configurable multi-cycle Tag RAM and Data RAM
  • Support cacheline LOCK, FLUSH and INVAL operations
  • 16-way associative
  • Can be configured to Cluster Local Memory

Benefits

  • Real-time Feature
  • RV32 IMACFDBPKVZfh/Zcxlcz, RV64 IMACFDPBKVZfh/Zc
  • 6 Stage Pipeline Dual-issue
  • I/D Cache
  • Security(PMP, TEE)
  • SP/DP FPU
  • NICE Extension
  • AXI system bus
  • RISC-V Standard Debug
  • JTAG & 2-wire JTAG
  • Low Latency Interrupt
  • Full Dev Kit & SDK

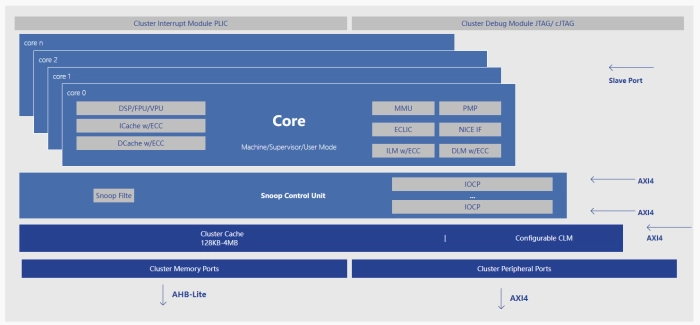

Block Diagram

32-Bit & 64-Bit High Performance Processor - 6-Stage Pipeline, Single-issue Block Diagram

Technical Specifications

Short description
32-Bit & 64-Bit High Performance Processor - 6-Stage Pipeline, Single-issue
