The ADC IP is a general-purpose sigma-delta converter and it is configurable for conversion speed and power consumption with adaptable oversampling ratio.
It is built using typical second order architecture using correlated-double-sampling method. The target application is sampling of transient input voltages with 8kS/s with low-power and 192kS/s respectively.
The ADC IP includes reference voltage generation (optional) and 4-to-1 input multiplexer (optional) providing 4 differential input channels.
The ADC is silicon proven in Automotive mass production using the XFAB XH018 process.
Measurement results and samples are available.
Fraunhofer IIS provides a detailed documentation and support for the IP integration. Modifications, extensions and technology ports of the IP are available on request.
15 Bit 8 kS/s Sigma-Delta ADC
Overview
Key Features
- Resolution: 15 bit
- Conversion rate: 8 kSps
- Power consumption: 1.3 mW @ 1.8V
- ENOB: 14 bit
- Operation clock: 2.0 MHz
- Input voltage range: ± 1.0V
- Operating temperature -40 – 175°C
Benefits
- Accelerated design service
- Design safety (first-time-right)
- Customer-specific flexible IPs
- Automated DfR and verification
- Seamless technology migration

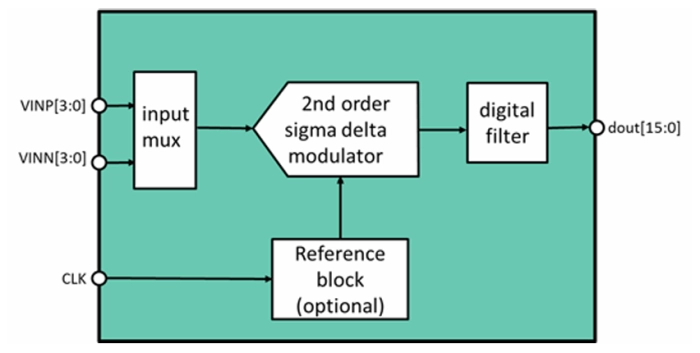

Block Diagram
Applications
- Industrial
- Automotive
- IoT
- Medical
- Automation
Deliverables
- GDSII data
- Simulation model
- Documentation
- Integration and customizing support
Technical Specifications
Foundry, Node
XFAB XH018 180 nm
Maturity
silicon proven, Automotive mass production
Availability
now
