12-Bit 1 MS/s DAC with voltage output

Overview

The IP consists of a 12 bit current steering DAC. The DAC is connected to a transimpedance amplifier(TIA) in order to provide a voltage output signal. The amplifier can be adapted for different applications to optimize for performance, power consumption or output load of the IP.

The digital input data is saved to an internal register and provided immediately to the output.

The IP uses a single current reference input. A matching current reference cell can be provided. 7 bit gain and offset trimming is included to adapt for process variations.

The DAC is silicon proven using the AMS C18 process. Measurement results are available from evaluation and volume production. One application of the IP is an industrial sensor ASIC for safety critical applications.

Fraunhofer IIS provides a detailed documentation and support for the IP integration.
Modifications, extensions and technology ports of the IP are available on request.

Key Features

Resolution: 12 bit
Conversion rate: 1 MS/s
Power consumption: 15 mW @ 3.3 V
Integral non-linearity: +/- 1.5 LSB
Diff. non-linearity: +/- 0.7 LSB
Supply voltage: 3.0 V – 3.6 V
Operation clock: 0 – 1 MHz
Output voltage range: 1.8 V – 2.8 V
Output load: >= 100 Ohm
Temperature range: -40 °C – 125 °C

Benefits

Low design risk due to silicon proven design
Easy to use input due to integrated output buffer
Robust operation across full temperature range from -40 °C up to 125 °C
Simple integration due to integrated reference drivers and reference trimming DAC

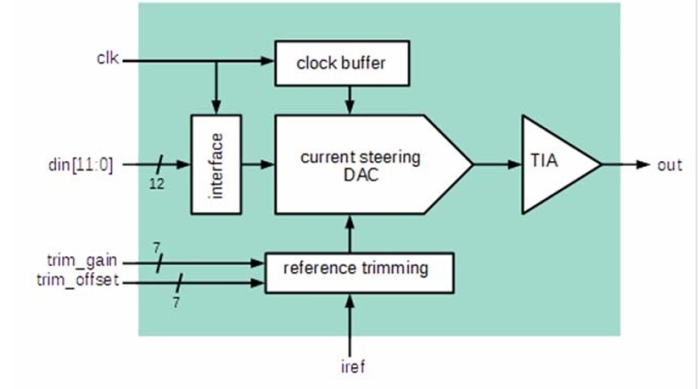

Block Diagram

Applications

Automation
Industrial

Deliverables

GDSII data
Simulation model
Documentation
Silicon validation report
Integration support

Technical Specifications

Foundry, Node

AMS C18 180 nm

Maturity

silicon proven, industrial use

Availability

now
