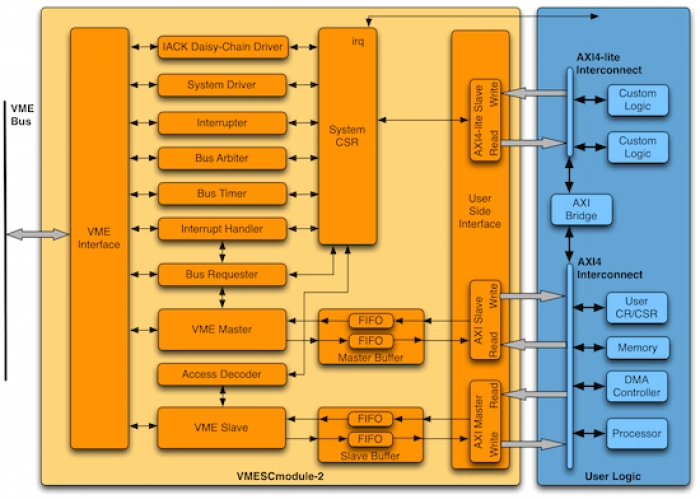

The VMESCmodule2 is Inicore's next generation VME System Controller core designed for FPGA and ASIC integrations. The core contains VME Slave and Master functions as well as System Controller features such as bus timer, arbiter, IACK daisy-chain driver, system clock driver and provisioning for CSR.
The AXI4 compliant user-side interface simplifies system integration. The core contains internal FIFOs and address mapping logic to bridge the VME to the AXI bus and vice versa. A dedicated AXI4-lite port is provided for independent CSR access.
With this rich feature set, the core can be used as a System Controller Module, as a Master Module, or as a Slave Module. This makes the VMESCmodule2 an excellent platform to base all your future VME designs on.
This core is available in two different flavors: VMESCmodule2e contains support for 2eSST while the VMESCmodule2 does not support 2eSST. Otherwise, their features are identical.
