USB 2.0 Device Transceiver

Overview

USB 2.0 DEVICE Transceiver is a fully integrated PHY Core which is a super-set of DEVICE PHY with High Speed (HS), Full-Speed (FS) and Low-Speed Transceivers and is compliant with the USB 2.0 and USB 1.1 Specifications. It includes Clock/Data Recovery, on-chip PLL, Integrated & Calibrated Termination and Pull-Up Resistors with full Analog Transceiver functionality for the Complete USB 2.0 PHY as illustrated in the figure. USB2 DEVICE Transceiver has standard UTMI so that ASIC vendors are isolated from the high speed and analog circuitry associated with the transceiver, thus reducing the design risk and speeding the design cycle.

The core’s main blocks are clock/data recovery for FS/HS, PLL, transceiver state machines, data encoder/decoder and high-speed analog transceiver as can be seen in the main block diagram above.

Key Features

  • Fully compliant with latest USB2.0 spec version 2.0.
  • Innovative technique for clock recovery from 480 Mbps data.
  • High frequency PLL.
  • Advanced high-speed transmitter and receiver.
  • Support High Speed HS and Full Speed FS modes. Interface with standard SIE (Serial Interface Engine).
  • Integrated High Precision Termination resistors.
  • Legacy USB 1.1 Interface

Block Diagram

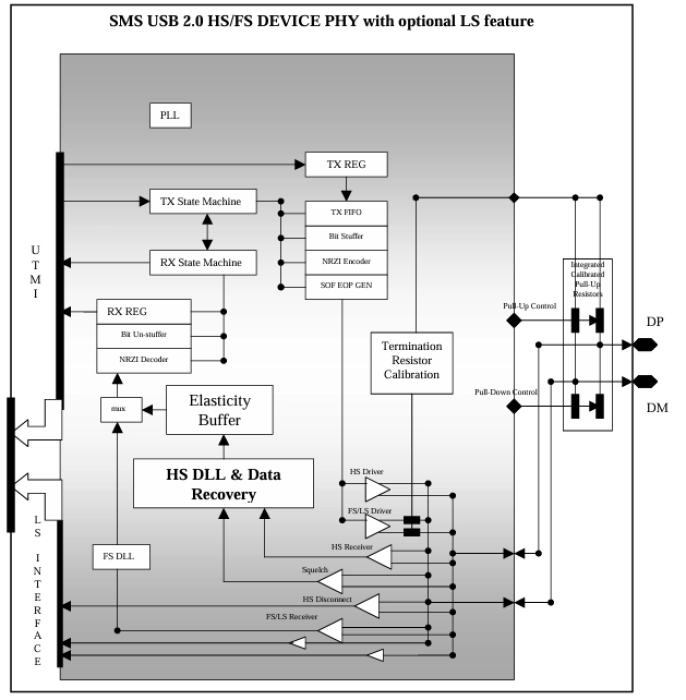

USB 2.0 Device Transceiver Block Diagram

Technical Specifications

Availability
now
×
