The Ultra Ethernet (UE) Verification IP provides an effective & efficient way to verify the components interfacing with Ethernet interface of an IP or SoC. The UE VIP is compliant with IEEE standard 802.3-2018 & UE Specifications V1.0. This VIP is light weight with easy plug-and-play interface so that there is no hit on the design cycle time.
Ultra Ethernet Verification IP
Overview
Key Features
- Supports AI base profile.
- UET features: Message semantics, Packet delivery, tx congestion control sublayers
- PDS layer supports RUD, ROD and UUD PDS ordering modes.
- PDS supports single and multiple PDC establishment.
- SES supports relative and absolute addressing.
- PDS supports various error packets generation and reception.
- Supports SES-PDS logical interface
- Ethernet supports 100G, 200G, 400G, 800G and 1.6T as per IEEE Std 802.3.
- Supports Standard IP layer
- Supports Standard DLL layer
- Supports Standard ethernet PHY layer with 100G PHY lanes
- Callback support in all Layers to provide user control.
- Rich set of configurations and parameters.
- Supports Dynamic as well as Static Error Injection scenarios.
- On the fly protocol checking static and dynamic assertion.
- Built in Coverage analysis.
- Graphical analyzer to show transactions for easy debugging
Benefits
- Available in native System Verilog (UVM/OVM/ VMM) and Verilog
- Unique development methodology to ensure the highest levels of quality
- Availability of Compliance & Regression Test Suites
- 24X5 customer support
- Unique and customizable licensing models
- Exhaustive set of assertions and coverage points with connectivity example for all the components
- Consistency of interface, installation, operation, and documentation across all our VIPs
- Provide complete solution and easy integration in IP and SoC environment

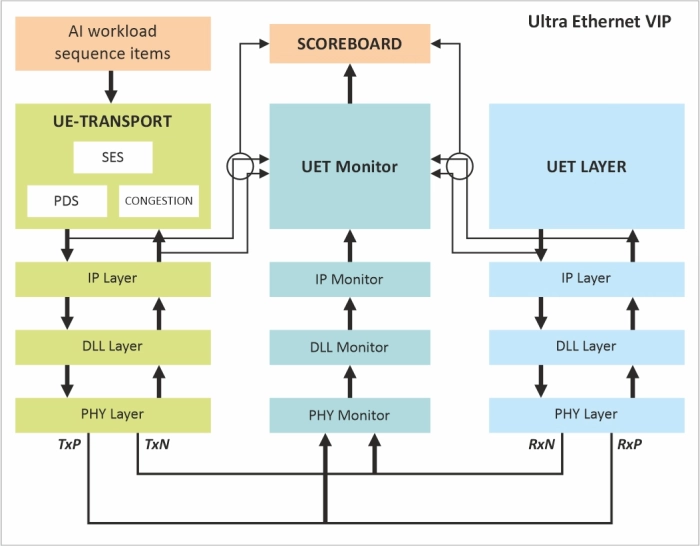

Block Diagram
Deliverables
- Deliverables Ultra Ethernet BFM’s for
- PDS layer with Congestion Management
- SES layer
- IP layer
- DLL Layer
- Reconciliation layer
- PCS layer
- PMA layer
- FEC layers (RS-FEC, BASE-R FEC)
- PMD layer
- Ethernet 100G/200G/400G/800G/1.6T layered monitors and scoreboard Test environment and Test Suite-
- Basic and Directed Protocol Tests
- Random Tests- Error Scenario Tests
- Assertions & Cover Point Tests
- User Test Suite
- Integration Guide, User Manual and Release Note
- GUI analyser to view simulation packet Flow
