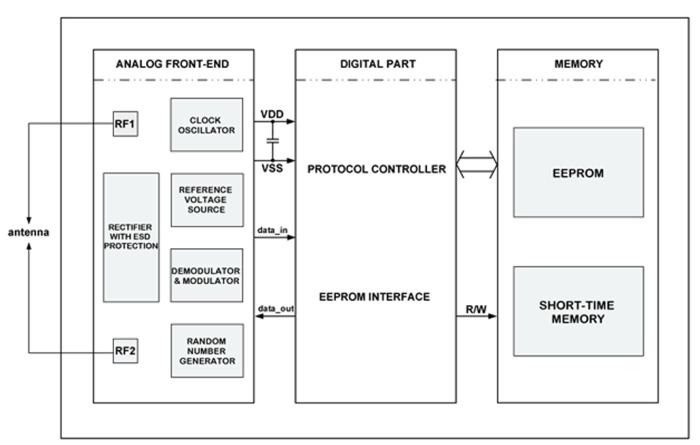

180SMIC_RFID_EPCGen2_01 IP is intended for use in passive UHF transponder applications. IP derives its operating power from an RF electromagnetic field generated by a reader, which is received and rectified by the IP. The IP tag sends the answer back to the reader using a backscatter modulation technique. The IP provides a fast and flexible anti-collision protocol based on internal random number generator according to EPC standard. IP supports all EPC C1G2 mandatory commands.
180SMIC_RFID_EPCGen2_01 has a 512-bit EEPROM organized in 4 banks.
