Tone Mapping Operator (TMO) Intel® FPGA IP

Overview

As a part of the Video and Vision Processing (VVP) Suite Intel® FPGA IP, the Tone Mapping Operator (TMO) Intel® FPGA IP corrects poorly exposed images and video to reveal invisible details.

TMO Intel® FPGA IP Improves the Video Quality and Viewing Experience in a Wide Variety of Applications by:

  • Applying intelligent, content-aware local tone mapping.
  • Statistically analyzing the image luminance both locally and globally.
  • Enhancing underexposed and overexposed imagery to utilize all available dynamic range without metadata.
  • Dynamically adjusting image components to improve overall image contrast.
  • Utilizing industry-standard interfaces to ease the integration into your FPGA design.
  • Minimizing resource utilization compared to competing products, enabling a more cost-effective solution.

Key Features

  • Multi-tile local image statistics analysis.
  • Support for 8, 10 and 12 bit per color component.
  • Support up to 4 pixels in parallel (PIP) per clock processing.
  • Low subframe latency (~ 100 clock cycles).
  • Support resolutions up to 4K at 60 fps on Intel® Cyclone® 10 FPGAs, Intel® Arria® 10 FPGAs, Intel® Stratix® 10 FPGAs, and Intel Agilex® 5 FPGA E-Series.
  • Support resolutions up to 8K at 60 fps on Intel Agilex® 7 FPGAs and on Intel Agilex® 5 FPGA D-Series.
  • AXI4-Stream video I/O interface.
  • AXI4-Stream ↔ Avalon® streaming interface protocol converters.
  • Avalon® memory-mapped CPU control and memory interfaces.
  • Low resource utilization for edge applications.
  • Free Intel® FPGA IP Evaluation Mode.
  • Design example available.

Block Diagram

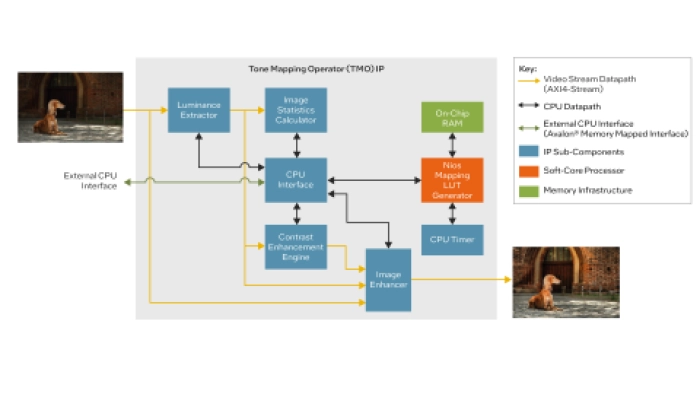

Tone Mapping Operator (TMO) Intel® FPGA IP Block Diagram
