Temperature Sensor on Samsung 14nm, LN14LPP

Overview

The temperature sensor indicates the junction temperature as a 12-bit binary digital code. It contains a main sensor, remote probes and an ADC. It is capable of monitoring multiple spots via remote probes. It has a resolution of 0.0625°C /1-code and operates within a junction temperature range of -40°C to 125°C.

Key Features

  • 14nm Low Power Plus (LN14LPP) CMOS device technology
  • Dual power supply: 1.8V±10%, and 0.8V-10% to 0.9V+5%
  • Operating junction temperature (TJ): -40°C to 125°C
  • Resolution: 0.0625°C
  • Accuracy: ±3°C
  • Capable of sensing junction temperature (TJ)
  • Supports monitoring multiple hot spots through remote probes

Benefits

  • Low Power
  • Low Area

Block Diagram

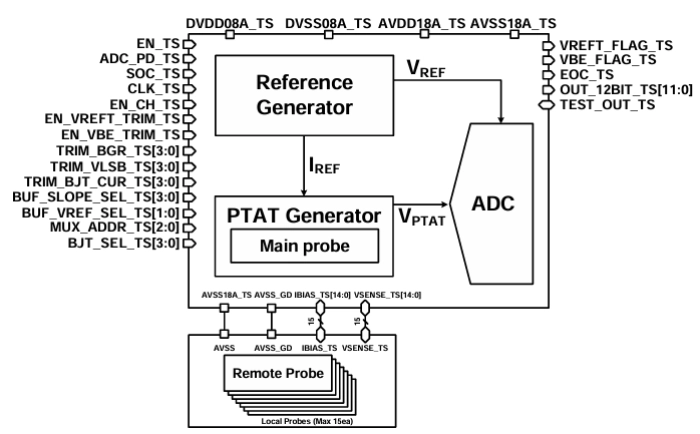

Temperature Sensor on Samsung 14nm, LN14LPP Block Diagram

Applications

  • Mobile
  • Automotive
  • HPC

Deliverables

  • FE(Front-End) : LEF, LIBERTY, MODEL, TB FUNCTION, TB VECTOR GEN, TWRAP
  • BE(Back-End) : CIR, DFM, DRC, GDS, LVS

Technical Specifications

Short description
Temperature Sensor on Samsung 14nm, LN14LPP
Vendor
Vendor Name
Foundry, Node
SF 14nm,LN14LPP
Samsung
Pre-Silicon: 14nm
×
Semiconductor IP
