Stallable pipeline stage with width expansion

Overview

The PIPE is a double register plus a small state machine that enables a fully synchronous stall-able pipeline to be built. A parameter defines the ratio of the input width to the output width. For example, if the input width is 8-bits and the Expansion Factor is 4 the the output width is 32-bits. The ORDY ready signal will indicate when at least a whole output word is available. The interface is fully compatible with a Standard FIFO interface and they may be mixed and matched. A “Stall” may be generated by gating the POP and ORDY signals to arrest the normal flow of data down the pipeline and allows any given stage to take multiple cycles when necessary. In doing so the IRDY signal is removed in the following cycle and the data that was to replace the data in the primary register is saved into the secondary register. When the “Stall” is removed the the secondary register contents are copied to the primary register and the IRDY is re-asserted for the next clock edge.

Key Features

  • Fully Synthesizable RTL - Verilog
  • Parameterized Expansion Factor
  • Static Timing Analysis compatible
  • Double Register for synchronous pipeline
  • Configurable width
  • Standard FIFO handshake interface

Block Diagram

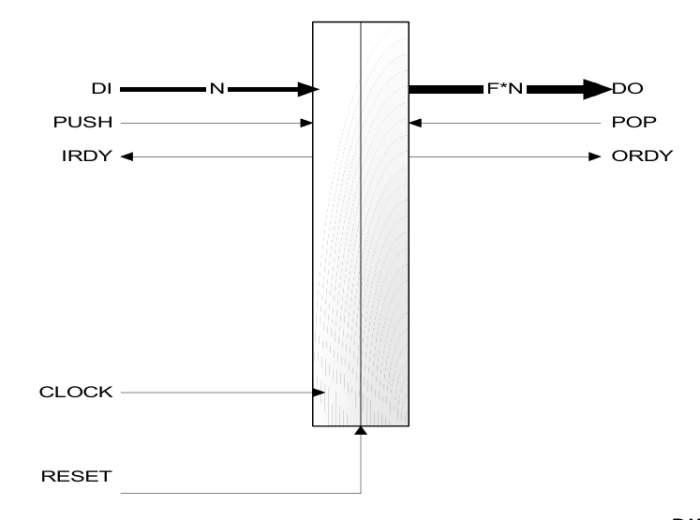

Stallable pipeline stage with width expansion Block Diagram

Applications

  • Fully Synchronous pipelines
  • Width Expansion

Deliverables

  • verilog RTL and Testbench

Technical Specifications

Short description
Stallable pipeline stage with width expansion
