ONFI Nand Flash Software Driver

Overview

The ONFI NFC Driver is a low-level driver developed for Arasan’s ONFI Nand Flash Controller IP that is used to communicate with the Nand Flash Device. The driver can also be used for validating a Nand flash device during its development and integration life cycles thereby helping designers reduce the time to market for their products. It provides a set of generic APIs to identify, read, program, and erase the flash device.

The Driver consists of two layers –, Hardware layer, and OS Abstraction Layer.



Key Features

  • Compliant with ONFI 3.2 and backward compatible to ONFI 3.0, 2.3 and 1.0
  • Supports SDR, NV-DDR and NV-DDR2, Toggle DDR/DDR2 modes
  • Easy-to-use interface for applications
  • Support up to NAND with 16K page size
  • Fully documented generic device operation APIv
  • Supports Read, Program and Erase Operations
  • Supports Cache Program, Cache Sequential and Random Read Operations
  • Supports LUN Resets, Multi LUN/DIE Operations
  • Supports On Die Termination
  • Supports Interleaving Operations
  • Easily portable to any OS, processors or hardware

Benefits

  • System manufacturers can port the ONFI NAND Controller Driver to respective system hardware and operating systems
  • Silicon developers can use the driver and board environment to test the device silicon during development
  • Silicon vendors can use the driver to create a reference system design for their customers

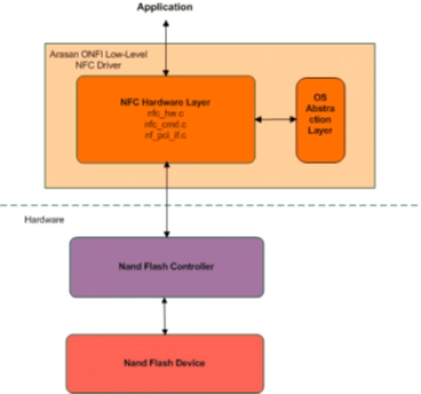

Block Diagram

ONFI Nand Flash Software Driver Block Diagram

Deliverables

  • Source code in c language and binaries for ONFI NAND Controller driver.
  • User Manual

Technical Specifications
