The CMS0045 ISDB-T Modulator provides all the necessary processing steps to modulate one, two or three transport stream into a complex I/Q signal for input to a pair of DACs, or an interpolating DAC device such as the AD9857/9957 or AD9789. Optionally the output can be selected as an IF to supply a single DAC.
The design has been optimised to provide excellent performance in low cost FPGA devices such as the Cyclone range from Altera or the Spartan range from Xilinx

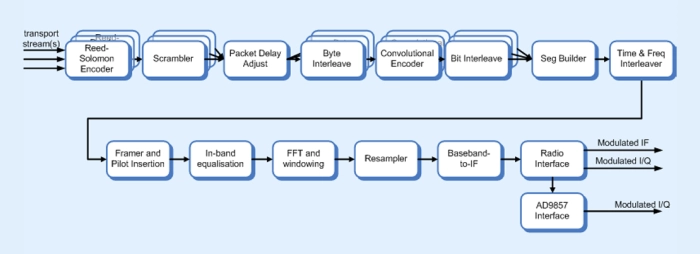

A description of the processing steps follows:
Reed-Solomon Encoder. This block generates Reed Solomon packets based on the industry standard MPEG RS(204, 188) code.
Scrambling. This block provides energy dispersal using the randomisation polynomial 1+x14+x15. Packet Delay Adjustment. Because the different Hierarchical Layers have different delays through the Byte Interleavers, each Layer is delayed to ensure the total delay through the system is an integer number of frames.
Byte Interleaver. This block performs the outer interleaving function with depth I=12 as specified by the ISDB-T standard.
Convolutional Encoder. This block performs convolutional encoding and data-rate puncturing. Bit Interleaver. This provides additional time dispersal of the signal for improved rejection of impulse noise.
Segment Builder. This block formats the hierarchical data for each layer into the specified number of active segments for that layer. Time Interleaver. This is a long-delay interleaver to spread the information over time to increase immunity to impulse noise.
Frequency Interleaver. The FITL disperses the data over multiple carriers to minimize signal degradation caused by nulls in the frequency response of the transmission environment.
QAM Mapper. This block performs the QAM constellation mapping for (D)QPSK, QAM16 or QAM64.
Framer and Pilot Insertion. The ISDB-T specification details a frame structure with scattered, continuous and TMCC pilots inserted at various carriers within each symbol. This block manages the pilot insertion dependent on the selected mode (2k, 4k or 8k), and symbol position within a frame.
IBEQ. An optional in-band equalizer circuit may be specified as a synthesis option. This allows the designer to easily compensate minor phase and gain slope associated with linear filter components on the board.
IFFT. This block performs the Inverse Fast Fourier Transform (IFFT) on the 2k, 4k or 8k carriers. A proprietary architecture is used which yields low Guassian noise, high MER outputs yet utilises low datapath widths. The IFFT also manages the on-air timing of the OFDM symbols by guard interval insertion. An optional windowing function is also included to reduce spurious emissions caused by the OFDM symbol transitions.
Resampler. This block resamples the 8.13 MHz complex IFFT output up to complex samples at the core clock frequency. This provides an ultra-flexible clocking strategy. This block also scales automatically as required to satisfy the selected channel bandwidth.
Baseband-to-IF. This block provides the option to mix the signal up to a higher IF as defined by a software register. This block may be removed using synthesis options if it is not required.
Radio Interface. This block performs some final, register-selectable processing functions to optimise the output for the radio in the target application. An optional processing step provides compensation for the sin(x)/x (or SINC) distortion that is introduced in the DAC. Additionally, the data can be formatted as either twos-complement or offset binary to suit various DAC devices. In may be formatted for external devices that could take separate I/Q, multiplexed I/Q or a single IF output.
Additional modes are added to support the Analog Devices AD9857/9957 that provides up-conversion, SINC filtering and DAC functions in a single package. The AD9857/9957 device requires that the I/Q data be multiplexed onto a single data bus. The ad9857_pdclk input is provided to enable this feature and should be sourced from the AD9857/9957 PDCLK output.
Interface modes are also available to support the Analog Devices AD9789 with RF up-conversion, SINC filtering and DAC functions in a single package.
Register Bank. The register bank provides a simple 32-bit interface for reading and writing registers within the modulator block. Full details of the registers within the modulator core are contained within the full data sheet.
External RAM. Most full-featured implementations will require an external RAM. This can be either SDRAM or synchronous SRAM, allowing implementation on a range of existing platforms.
The SDRAM interface is designed to work with standard interface blocks supplied by FPGA vendors. These interfaces are available to support most SDRAM technologies. The required SDRAM size is 4Mx8.
Alternatively, the CMS0045 also provides direct interfacing to 1MB or 2MB SRAM in 8 16 or 32-bit width.
Serial Programming. The core provides optional programming support for a range of Analog Devices parts, including AD9587/9957 and AD9789 DACs, AD9516 low-jitter clock generator and the ADF4350 low-phase-noise wideband synthesizer.
