High performance Ethernet PCS IP core for data centers, hyperscaler and AI applications
The 800G Ethernet PCS IP core is a silicon agnostic implementation of the Physical Coding Sublayer (PCS) described in the Ethernet standard IEEE 802.3-2020 and is compliant with Clause 170 and Clause 172 of the IEEE 802.3df specification.

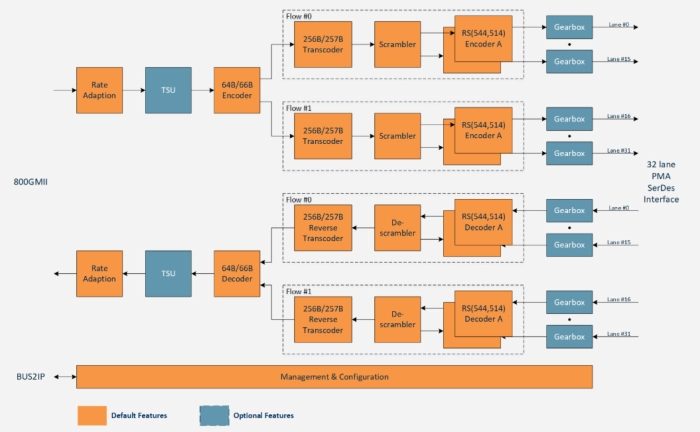

800G Ethernet PCS IP provides an interface between the Media Access Control (MAC) and Physical Medium Attachment (PMA) through a 32-lane parallel interface and offers an 800GMII interface on the other side.
The 800G Ethernet PCS IP core is verified using advanced methodologies for RTL design, HW verification, and interoperability testing. It has been optimized for size and is a rigorously tested solution to speed up project timelines.
The 800G Ethernet PCS IP supports 800G line rates, however, other Ethernet PCS speeds are also available, including the 100G Ethernet PCS, 200G and 400G Ethernet PCS.
