DVB-T/DVB-H demodulator

Overview

A highly configurable DVB-T demodulator core suitable for a wide-range of applications included test, measurement and broadcast montioring equipment. Our core provides the DVB-T(H) extensions which when combined with the superior performance offered by our inter-carrier-interferance cancellation algorithm make this core ideally suited for mobile environments.

The flexibility of the core provides for application-specific optimisations not found within tradational off-the-shelf offerings, such as low symbol rates and reduced number of COFDM subcarriers for low-bandwidth applications.

Standards compliance

ETSI EN300 744 v1.5.1
ETSI EN302 304
NorDig-Unified 1.0
IEC62002-1 (MBRAI)

Key Features

2k, 4k and 8k COFDM modes.
Variable 5-8MHz bandwidth interpolation.
QPSK, QAM-16 and QAM-64 support.
Robust doppler (ICI) compensation.
Impulsive interference suppression.
Burst-mode reception (Timeslicing)
MPE FEC for DVB-H applications.

Benefits

Implementation
- Low system clock requirement: >36MHz.
- Pre-configured 'bitstream' for FPGA.
- Altera Hardcopy structured ASIC.
- Evaluation boards available.
Plug-ins
- Multi-channel diversity.
- Application-specific optimisations.

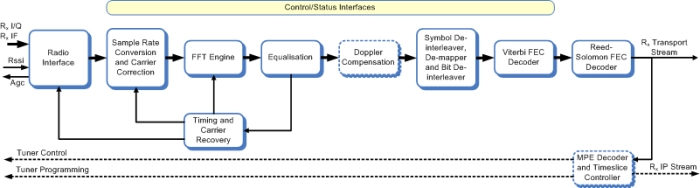

Block Diagram

Applications

Test and broadcast monitoring.
"software defined" receivers.
Point-to-point RF digital video.
Wireless security and surveillance cameras.

Technical Specifications

Availability

Now
