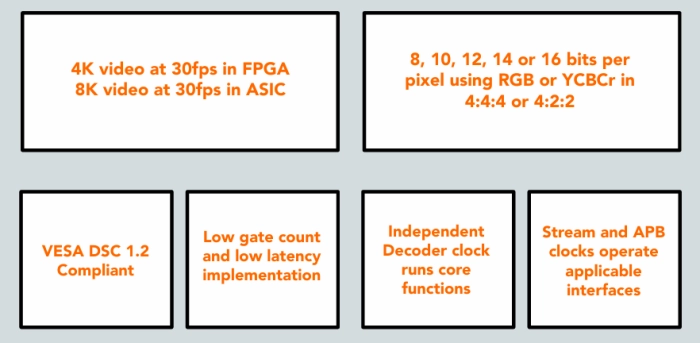

The Display Stream Compression (DSC) Encoder offers real-time compression of high-definition streams with resolutions up to 8K. The core supports 8, 10, 12, 14 or 16 bits per pixel input using either RGB or YCbCr in 4:4:4 or 4:2:2 format. The DSC Encoder core integrates industry standard interfaces for host configuration and control, video input, and output.
Host
32-bit AMBA Peripheral Bus 4 (APB) slave interface for programming and control. All internal configuration and status registers are accessible from the slave APB interface.
Input
Parallel streaming interface with VSync and HsSync support for image framing.
Output
AXI4-Stream Protocol interface is implemented to support the transfer of encoded data.
Performance & Area
The DSC Encoder implementation includes best-in-class design processes and is efficient in resource usage and operating frequency. The core requires less than 250K gates in the TSMC 28HP process, and a 175MHz core clock performs 4K encode. For detailed information on area and timing, please contact Trilinear Technologies with the specific technology platform required.
