The Controller Area Network (CAN) bus, originally developed for the car industry, is a fast, reliable and cost-effective data bus for multi-master and real-time applications. In addition to automotive applications, it is widely used in applications such as factory automation, machine control, building automation, maritime, medical, railway and avionics. The iniCAN core first was introduced to the market in 1994 and since then is used in a lot of different applications.
The iniCAN core contains all the low-level CAN protocol handling. The core contains the complete data link layer, including the framer, transmit and receive control, error handling, error reporting and bit synchronization. Simple message level transmit and receive interfaces facilitate smooth system integration. The core provides status on error counts and events as well as a low-level frame reference pointer which identifies the current bit position within a CAN frame. This feature comes in handy when developing CAN protocol analyzers or if detailed reporting on the bit-level is required.
CAN Bus Controller (Controller Area Network)
Overview
Key Features
- Implementation of CAN protocol version 2.0A/B, ISO-118980-1
- Supports standard and extended identifiers
- Maximum bus speed of 1 Mbps
- Programmable pre-scaler (1-256)
- Programmable bit sampling settings according to CAN standard
- Access to internal frame reference pointer
- Indicates which bit of a CAN frame is currently on the bus
- Built-in CAN error handling
- Access to receive and transmit error counters
- Bus state: Error active, error passive, bus-off
- Interrupts for CRC error, bit stuffing error, bit error, format error, arbitration loss, and overload frame
- Parallel message level interface
- Simplifies system integration
- Test modes
- Listen only mode (controller doesn't send any messages to the bus)
- Internal loop-back (controller receives only its own messages)
- External loop-back (controller receives a copy of sent messages)
- Register based design
- Technology independent
- Full synchronous design
Benefits
- CAN networks can be used as an embedded communication system for microcontrollers as well as an open communication system for intelligent devices. The CAN serial bus system, originally developed
- for use in automobiles, is increasingly being used in industrial field bus systems, the similarities are remarkable. In both cases some of the major requirements are: low cost, the ability to function in a difficult electrical environment, a high degree of realtime capability and ease of use.
- Application Specific Message Filters
- We provide application specific message filters. Whether you need a DMA controller interface, special filter capabilities or message FIFOs with priority encoding we are happy to provide you with a one-stop shopping
- solution.

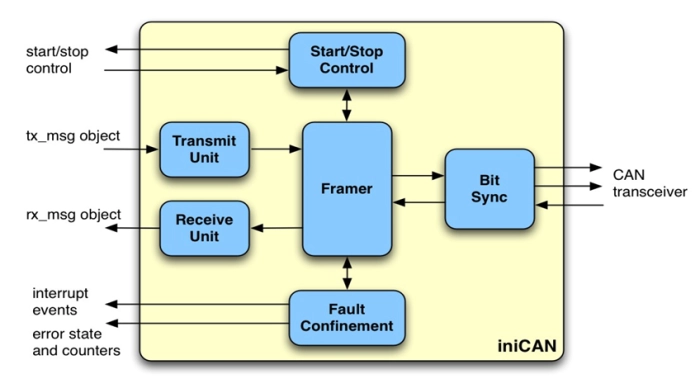

Block Diagram
Applications
- Automotive
- Avionics and aerospace
- Building automation
- Entertainment
- Factory automation
- Machine control
- Science
Deliverables
- VHDL or Verilog RTL Source Code
- Verification Suite
- Functional Testbench including CANbus tranceiver model and additional CAN nodes
- Synthesis Script
- Data Sheet
- User Guide
- Hotline Support by means of phone, fax and e-mail
Technical Specifications
Foundry, Node
Technology independent
Maturity
Silicon proven in ASIC and FPGA Technologies
Availability
now
