AMBA AHB Bus to DDR SDRAM Controller

Key Features

• External pin reduction by transferring 2 bits of data per pin.
• Supports multiple external SDRAM banks.
• Automatic refresh generation with programmable refresh intervals.
• Self-refresh mode to reduce system power consumption.
• Standard delay cells or user provided DLL for DQ and DQS alignment.
• Integrated data buffer synchronizes user interface with DDR SDRAM data.
• Operates on both discrete DDR SDRAM chips and DDR SDRAM DIMM.
• Programmable memory size: 4, 8, and 16 bits per SDRAM.
• Programmable SDRAM access timing parameters.
• Automatic refresh generation with programmable refresh intervals.

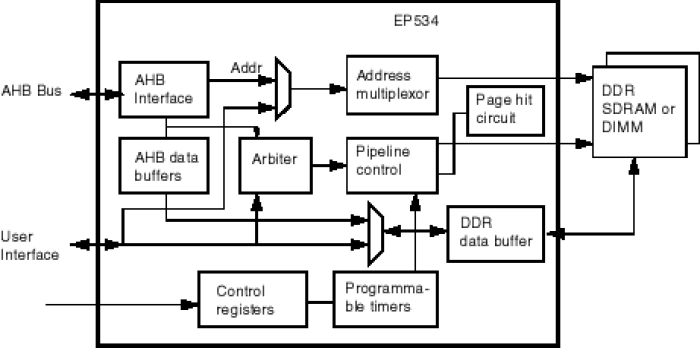

Block Diagram
