ACAP HDR Image Signal Processing Framework

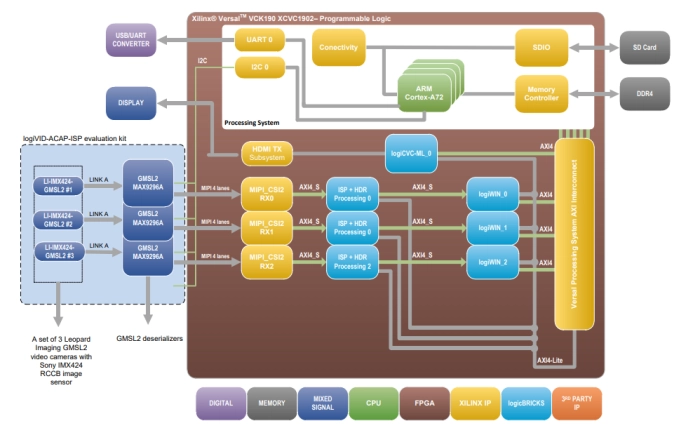

The logiREF-ACAP-MULTICAM-ISP ACAP HDR Image Signal Processing Framework enables Xylon logiVID-ACAP-ISP HDR ISP Evaluation Kit for Versal ACAP users to quickly utilize the provided hardware platform for the development of AMD-Xilinx Versal Adaptive Compute Acceleration Platform (ACAP) based embedded multi-camera vision systems. The HDR ISP pipeline enables crisp camera video under altering and rough lighting conditions in next generation multi-channel embedded systems for use in automotive, surveillance, medical, aerospace and similar video and vision AI applications.

The logicBRICKS logiISP-UHD IP core enables parallel processing of multiple Ultra HD video inputs in different AMD-Xilinx devices, ranging from the small AMD-Xilinx Artix FPGAs to the latest AMD-Xilinx Versal Adaptive Compute Acceleration Platform (ACAP) devices. The design showcases how to connect high-quality inputs from automotive-grade cameras to on-board post-processing solutions or feed the stream to hardware-accelerated integrated neural networks running on this adaptive computing acceleration platform.

All logicBRICKS IP cores are supplied with bare-metal and appropriate Linux software drivers. The provided video capture and display demo applications run in Linux OS.
