8051 Microcontroller

Overview

The SI80MC51 is an Intel microcontroller compatible, which is a true computer on chip. The Product incorporates all of the features found in a microprocessor CPU : ALU, Program Counter, Stack Pointer and Registers. It also has added the other features needed to make a complete computer : ROM, RAM, parallel I / O, serial I / O, counters, and a clock circuit. The prime use of a microcontroller is to control the operation does not change over the of a machine using a fixed program that is stored in ROM and that lifetime of the system SI80MC51 8 bit microcontroller is optimized. for control - oriented applications that require lower power, higher integration and higher performance.

Key Features

  • Eight - bit CPU.
  • Sixteen - bit program counter and data pointer.
  • Eight - bit program status word.
  • Eight - bit stack pointer.
  • Internal ROM of 4k.
  • Internal RAM of 128 bytes.
  • Four register banks, each containing eight registers.
  • Sixteen bytes, which may be addressed at the bit level.
  • Eighty bytes of general - purpose data memory.
  • Thirty - two input / output pins arranged as four 8 bit ports P0 - P3.
  • Full duplex serial data receiver / transmitter : SBUF.
  • Control registers : TCON, TMOD, SCON, PCON, IP, and IE.
  • Two external and three internal interrupt sources.
  • Five Interrupts are provided.
  • Fully synthesizable Register Transfer Level (RTL) VHDL.

Block Diagram

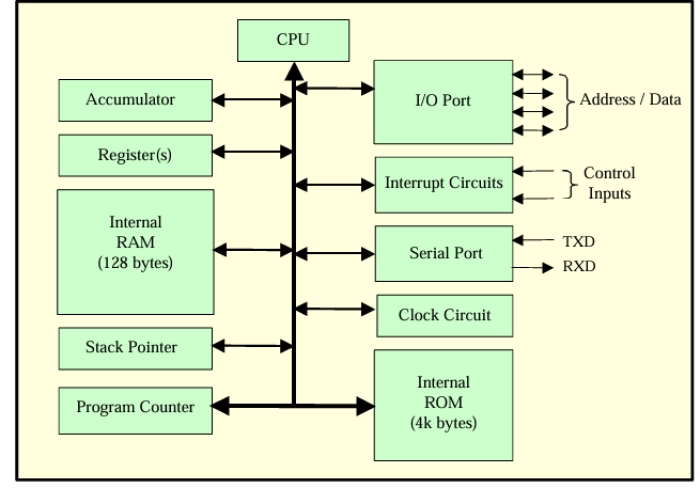

8051 Microcontroller Block Diagram

Technical Specifications
