8 Bit 6 GS/s Current Steering DAC on Fujitsu 55 nm CS250L

Overview

The IP consists of an 8 bit current steering DAC clocked externally for 4 - 6 GS/s. The differential output signal of maximum +/- 800 mV is driven onto a load impedance of 100 Ohm and can be calibrated within a range of +/- 25 % of its nominal value to adjust to load conditions.

The IP needs an external clock with high accuracy and low periodic jitter, because the clock jitter influences the dynamic behavior of the converter.

The digital input word of 8 bits is taken as a 4x parallel bus. A data clock provides the frequency; phase sync for the data interface is done via an internal FIFO. The DAC is silicon evaluated in Fujitsu 55 nm CS250L technology.

Fraunhofer IIS provides a detailed documentation and support for the IP integration. Modifications, extensions and technology ports of the IP are available on request.

Key Features

  • Resolution: 8 bit
  • Conversion rate: 4 to 6 GS/s
  • Power consumption: < 350 mW
  • Signal-to-Noise: > 43 dB (up to 3 GHz)
  • Spurious-free dynamic range: > 46 dB (up to 3 GHz)
  • Differential  output voltage:   +/- 800 mV (100 Ω load)
  • Supply voltage core: 1.2 V +/- 5 %
  • Supply voltage peri:  3.3 V +/- 5 %
  • Operating clock: 4 to 6 GHz
  • Temperature range:- 40 oC to 125 oC

Benefits

  • Low design risk due to silicon evaluated design
  • Robust operation across full temperature range from - 40 °C up to 125 °C
  • Tunability of full-range voltage provides adaptable  amplitude while keeping full resolution

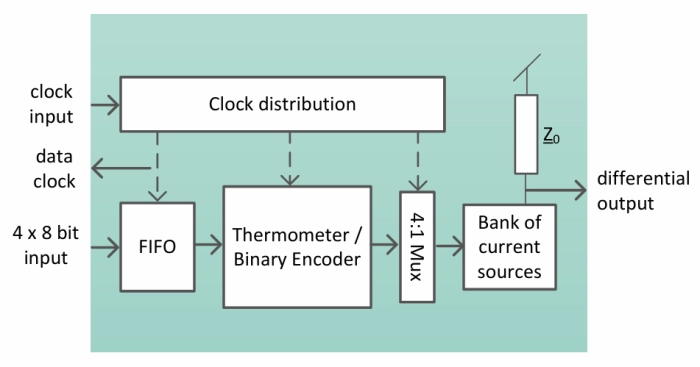

Block Diagram

8 Bit 6 GS/s Current Steering DAC on Fujitsu 55 nm CS250L Block Diagram

Deliverables

  • GDSII data
  • Simulation model
  • Documentation
  • Integration support

Technical Specifications

Foundry, Node
Fujitsu 55 nm CS250L
×
