Overview
The UX1000 Series have three different variants: UX1030, UX1040 and UX1060. UX1030 is a 3-wide processor with good performance and smaller power & area; UX1040 is a 4-wide processor with better performance and balanced power & area; UX1060 is a 6-wide processor with even higher performance targeting high-end applications.
1000 Series Performance and Configurability
| |
Highlights of UX1000 Processor |
| Pipeline |
Out-of-Order 12-pipeline |
| Decode Width |
Configurable 3, 4 or 6-wide decode |
| Issue-Width |
Configurable up to 8 integer instructions and 3 vector instructions |
| Privilege Modes |
Machine, Supervisor, User |
| ISA |
RV64IMAFDCVBZfh |
| Bit Manipulation |
Zba + Zbb + Zbc + Zbs |
| Floating Point |
Zfh(Half precision), F (Single precision) and D(Double precision) |
| Vector Extension |
RISC-V Vector 1.0 Version (Up to Date) |
| Memory Addressing |
Virtual addressing Sv39, Sv48 |
| Instruction Subsystem |
Instruction Cache , ILM, Private L2 Cache, Cluster Cache |
| Data Subsystem |
Data Cache, DLM , Private L2 Cache, Cluster Cache |
| SoC Connectivity |
AXI Mem Bus, AHB-Lite Peripheral Bus, AXI Slave Port, AXI IO Coherence Port |
| Multi-core Configurations |
Support single cluster and multi-cluster configuration, each cluster can have up to 8 cores |
Key Features
1000 Series Configurable Pipeline Diagram.
- Cutting-Edge Pipeline and Micro-Architecture Design
- UX1000 Series have three variants configurations: UX1030, UX1040 and UX1060.
- UX1030:3-wide decode
- Good performance with smaller power & area.
- UX1040:4-wide decode
- Better performance with balanced power & area.
- UX1060:6-wide decode
- Even higher performance targeting high-end applications.
1000 Series Single Cluster Configuration Features.
- Single Core Configuration Features:
- RISC-V RV64IMACFDVBZfh ISA supported.
- Configurable 3, 4 or 6-wide decode, out-of-order Pipeline.
- Full Vector Extension with configurable VLEN & DLEN.
- Double, Single and Half-Precision floating point.
- Configurable ICache, DCache, ILM and DLM with ECC.
- Cluster Configuration Features:
- Up to 8 SMP cores in one Cluster with Cache Coherency.
- Configurable Private L2 cache + Cluster Cache .
- Configurable IO Coherency Ports.
- Configurable Cluster Cache with SECDED ECC.
- Configurable CLM partition for deterministic data access in Cluster Cache with 128-b CLM port.
- Configurable Dual-Mode feature (Real-Time & Application).
1000 Series Multi-Cluster Configuration Features
- Each Cluster supports up to 16 cores.
- Each core can be configured with Private Cluster Cache.
- Nuclei-CCI:
- Nuclei developed Cross-Bar based Coherent interconnect for Multi-Cluster.
- Support System Level Cache.
- Nuclei-NoC:
Nuclei developed Non-Coherent Mesh-NoC based bus fabric.
- Heterogeneous Multi-Cluster Mode
- Different clusters (UX1060, UX1040, or UX1030) can be combined into one subsystem.
- Support up to 8 Clusters in a subsystem.
Benefits
- Real-time Feature
- RV64I MAFDCVBZfh
- 12-Stage Pipeline
- I/D Cache
- Machine, Supervisor User Mode,Hypervisor
- Security(PMP, TEE)
- NICE Extension
- AXI system bus
- RISC-V Standard Debug
- JTAG & 2-wire JTAG
- Low Latency Interrupt
- Full Dev Kit & SDK

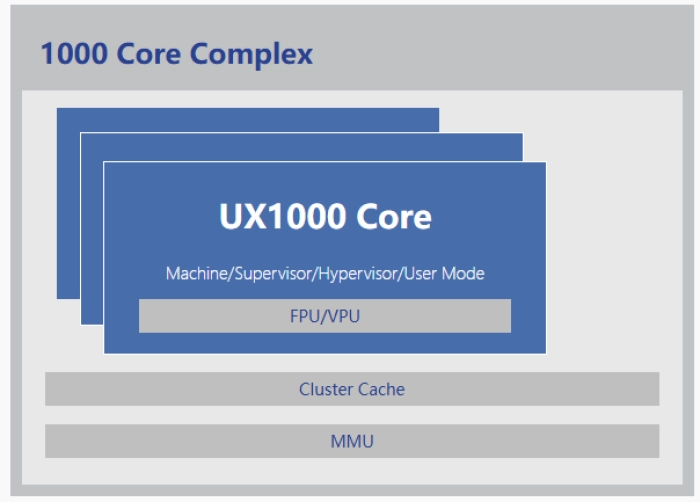

Block Diagram
Technical Specifications
Short description
64-bit High Performance Out-of-Order Processor - Out-of-Order, 3/4/6-Wide Decode
