32-Bit Automotive Processor - 9-Stage Pipeline, Dual-issue

Overview

NA900 series processor is the 1st ISO26262 ASIL-B/D Product Certified RISC-V CPU IP, Nuclei self-developed STL supports multiple ASIL-B automotive use cases.

NA900D Series

  • Systematic Capability:ASIL D
  • Hardware Safety Integrity: ASIL D in DCLS mode

NA900B Series

  • Systematic Capability:ASIL D
  • Hardware Safety Integrity: ASIL B
  • Nuclei self developed Softwate Test Library for ASIL B application
  • Fault Injection simulation FMEDA report for configurable design
  • ASIL B support fot both split mode and singlecore mode
  • Safety enhanced hardware for trade-off between diagnostic coverage and hardware cost

Key Features

  • RISC-V RV32 IMACFDPVBZfh ISA supported
  • Dual Issue, in-order 9 stage Harvard Pipeline
  • 64-bit AXI System Bus, Configurable 64-bit AXI slave port
  • Double, Single and Half-Precision floating point
  • Configurable SIMD DSP Extension
  • Configurable Instruction and Data Cache
  • Configurable ILM (Instruction Local Memory) with ECC
  • Configurable DLM (Data Local Memory) with ECC
  • PMP supported to meet the system security needs
  • Full Standard Debug Function with JTAG and cJTAG Port
  • Full Standard RISC-V Toolchain, and Linux\Windows IDE supported

Benefits

  • Real-time Feature
  • RV32IMACFDPB
  • 9 Stage Pipeline Dual-issue
  • I/D Cache
  • Security(PMP, TEE)
  • AXI System Bus
  • RISC-V Standard Debug
  • JTAG & cJTAG
  • Low Latency Interrupt
  • Full Dev Kit & SDK

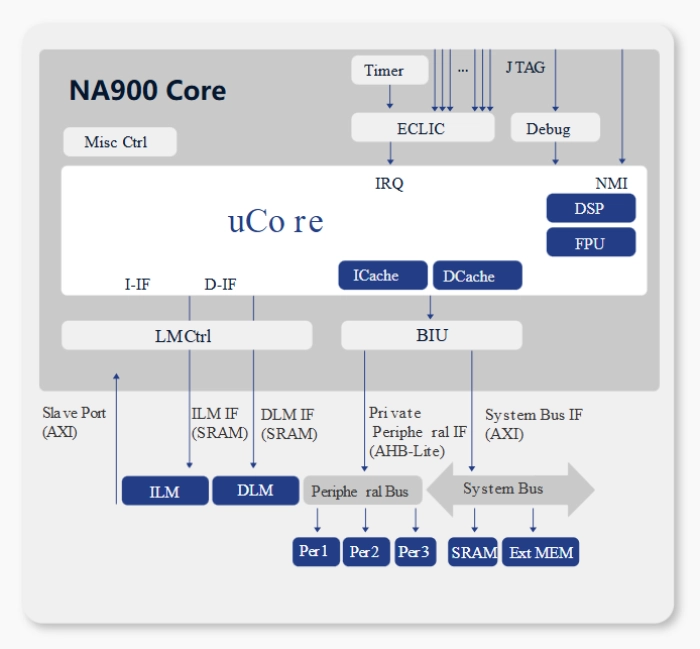

Block Diagram

32-Bit Automotive Processor - 9-Stage Pipeline, Dual-issue Block Diagram

Technical Specifications

Short description
32-Bit Automotive Processor - 9-Stage Pipeline, Dual-issue
