This pipelined ADC can be applied for up to 20MSps sampling frequencies. By using
interleaved switched-capacitor circuitries a CLK signal with half the sampling rate needs to be applied.
This ADC is built as a single-ended architecture and is designed to convert input signals from 0.5 – 2.3V at 3.3V supply voltage with up to 10 MHz input bandwidth with 12 bits resolution.
The ADC IP includes reference voltage generation with buffers and optional high-precision bandgap reference. The accuracy of the ADC is ensured by one-time-trimming of the reference voltages. Power-down mode is available.
The ADC is silicon proven using the XFAB XH035 process. Measurement results and samples are available.
Fraunhofer IIS provides a detailed documentation and
support for the IP integration. Modifications, extensions and technology ports of the IP are available on request
12 Bit 20 MS/s Pipeline ADC
Overview
Key Features
- Resolution: 12 bit
- Conversion rate: up to 20 MS/s
- Power consumption: 125 mW @ 3.3 V
- Integral non-linearity: +/- 2.0 LSB
- Diff. non-linearity: +/- 0.7 LSB
- Supply voltage: 3.0 V – 5.0 V
- Input voltage range: 0.5 - 2.3 V
- Operating temperature: 0 – 85 °C
Benefits
- Accelerated design service
- Design safety (first-time-right)
- Customer-specific flexible IPs
- Automated DfR and verification

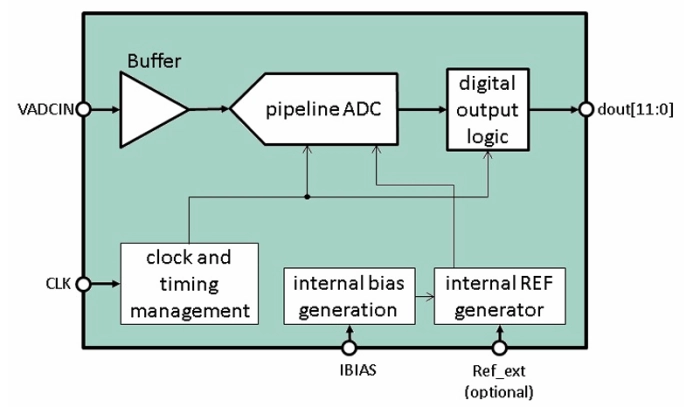

Block Diagram
Applications
- IoT
- Medical
- Consumer
- Automotive (on request)
- Industrial (on request)
Deliverables
- GDSII data
- Simulation model
- Documentation
- Integration and customizing support
Technical Specifications
Foundry, Node
XFAB, XH035, 350nm
Maturity
silicon proven
Availability
now
