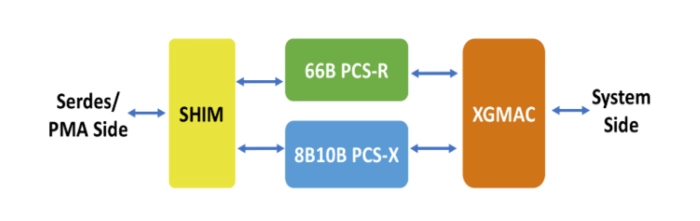

OmegaCORE 25G/10G/SGMII/1000BASE-X PCS and MAC is the fully integrated Physical Coding Sublayer (PCS), KR FEC (IEEE Clause 74 – fire code FEC), SGMII/1000BASE-X and Media Access Controller (MAC) core for 25Gbps, 10Gbps, 2.5Gbps/1.25Gbps Ethernet applications which is complaint with IEEE 802.3 standard and SGMII specification 1.6. The interface to the PMA supports a single channel Quad mode bidirectional, serial interface. The PCS sublayer supports both 64/66B encoding (10GE) and 8B10B encoding (SGMII/1000BASE-X) with an optional FEC layer function for backplane (10G-KR) application. This Quad Mode Core is configurable through software register.
The east-bound interface from the MAC provides a configurable 64-bit system interface.
The west-bound interface performs the mapping of transmit and receive data streams (at the PMA layer) to the on-chip SERDES.
