LLM Inference on IMC-NoC Architecture with Balanced Dataflow and Fine-Grained Parallelism

By Yimin Wang, Yue Jiet Chong, Xuanyao Fong
Department of Electrical and Computer Engineering, National University of Singapore, Singapore

Abstract

LLM inference has become an essential service, yet it imposes unprecedented demands on memory bandwidth, computational density, and communication efficiency. While IMC is a promising solution to the memory wall issue, the heterogeneous data dynamicity of LLM requires complementary resources to handle intermediate data generated during run-time. Furthermore, the massive number of parameters in LLM necessitates scale-up architectures where on-chip data movement is often the primary performance bottleneck.

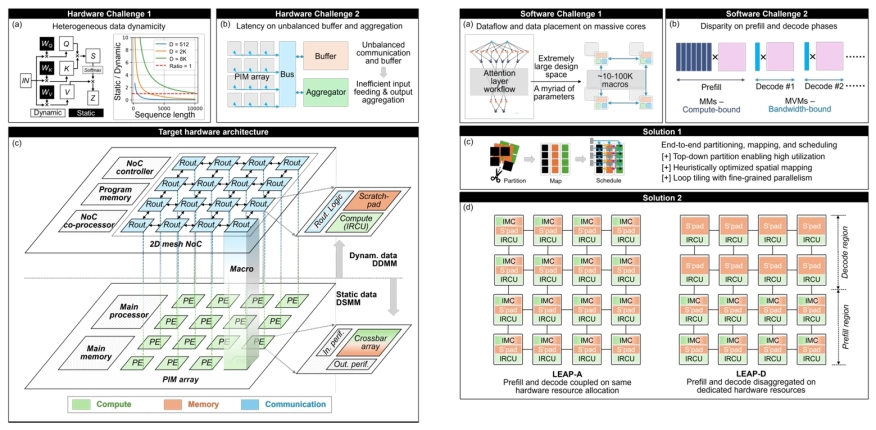

This article presents a hardware-software co-design framework that unifies distributed compute, memory, and communication into a seamless processing-communication fabric. On the hardware side, we propose a scalable architecture, named LEAP, that integrates IMC PE, NMC PE, and INC. This allows each hardware layer to execute specialized tasks: IMC for static weights, NMC for dynamic data, and INC for partial result reduction. On the software side, we introduce a partitioning, mapping, and scheduling framework optimized for key metrics in LLM serving, including throughput and latency. To address the distinct computational intensities of the prefill and decode phases, we present a prefill-decode disaggregation approach that dynamically reconfigures PE organizations to maximize resource utilization. Compared to commercial GPU platforms, the proposed architecture provides a throughput and an energy efficiency improvement of ≥1.52× and 24.91×, respectively.

Index Terms—Large Language Model, In-Memory Computing, Near-Memory Computing, Network-on-Chip

To read the full article, click here
