ULL TCP/IP, UDP/IP Offload Engine
High-performance TCP and UDP IP offload engine cores offer a reliable, ultra-low-latency solution for financial and network appli…
Overview
High-performance TCP and UDP IP offload engine cores offer a reliable, ultra-low-latency solution for financial and network applications. They address the data center industry’s growing need for throughput and hardware acceleration and provide network protocol offload for applications such as financial data processing, reprogrammable Smart NICs, and high-performance computing.
Three FPGA IP core versions are available through standard licensing options, including TCP/IP Offload Engine (ToE), UDP/IP Offload Engine, and a version supporting both TCP/IP and UDP/IP protocols offload.
Easily integrated with innovative technologies such as our ultra-low-latency Ethernet MAC PCS and PCIe DMA controllers, these cores radically change the way we think about speed and efficiency.
Key features
- Layer 2 through Layer 4 solution comprises:
- ARP, IPv4, and ICMP (ping)
- TCP and UDP
- TCP/UDP session management
- Configurable number of connections, up to 64 per endpoint
- Server-side or client-side support, per connection
- TCP congestion control via fast retransmit/recovery
- TCP support for MSS, timestamps
- TCP Retransmission buffer
- Delayed Acknowledge
- RTO computation RFC-6298
- Checksum verification and calculation
- Store/Forward, Cut-Through Mode
- 32b AXI-4 @ 322MHz (MAC side)
- On-Chip application Interface :
- 32b AXI-4 @ 322MHz (Cut-Through Mode)
- 128b AXI-4 @ 322MHz (Store and Forward Mode
- Host Processor Interface (HPI) for non-offload protocols
- Easy integration with the vendor's ULL MAC/PCS and ULL PCIe DMA Controller

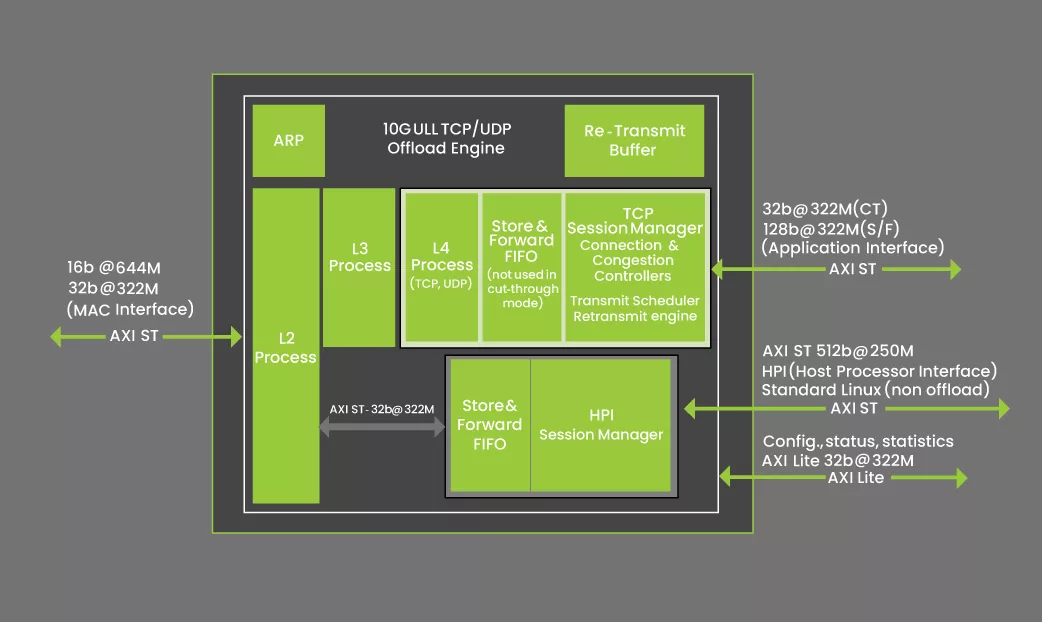

Block Diagram
ULL TCP/IP, UDP/IP Offload Engine block diagram
Benefits
- Unmatched Latency Performance: Best in-class latency and throughput performances with a full RTL implementation supporting layers 2, 3, 4 (ARP, IPv4, ICMP, TCP, UDP).
- A complete range of IP Cores to support your needs: Three FPGA IP core versions are available through standard licensing options, including TCP/IP Offload Engine (ToE), UDP/IP Offload Engine, and a version supporting both TCP/IP and UDP/IP protocols offload.
- Easy integration with complementary IP Cores: Easily integrated with innovative technologies such as our ULL Ethernet MAC PCS and PCIe DMA controllers, these cores radically change the way we think about speed and efficiency.
Applications
- Electronic Trading
- Networking
- Storage
- Security
- High Performance Computing (HPC)
Specifications
Identity
Part Number
ULL TCP/IP, UDP/IP Offload Engine
Vendor
Orthogone Technologies inc.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Canada
