1G BASE-T Ethernet Verification IP
The 1G BASE-T Ethernet Verification IP provides deliverables an effective & efficient way to verify the components interfacing wi…
Overview
The 1G BASE-T Ethernet Verification IP provides deliverables an effective & efficient way to verify the components interfacing with the Ethernet interface of an IP or SoC. The 1G Ethernet VIP is fully compliant with the IEEE standard 802.3 specification. This VIP is lightweight with easy plug -and- play interface so that there is no hit on the design cycle time.
Key features
- Supports Standard GMII Interface .
- Supports Full Duplex and Half Duplex operation.
- Supports MMD block in all Physical sub-layers
- Provides STA controller to configure the MMD blocks.
- Supports EEE mode.
- Supports all types of error injection and detection.
- On-the-fly protocol checking using protocol check functions.
- Supports clause 28 compliant Auto negotiation
- Provides configuration in monitor for both error injection and normal test cases.
- Provide scoreboard for endpoint verification.
- Support clock and data recovery for all Phy sub layers.
- Support for generation of all command frames defined in the specification.
- Callback in RS and Phy layers to provide user control.
- Graphical Protocol layer analyzer shows Ethernet data for easy debug.
Benefits
- Available in native System Verilog (UVM/OVM/ VMM) and Verilog
- Unique development methodology to ensure the highest levels of quality
- Availability of Compliance & Regression Test Suites
- 24X5 customer support
- Unique and customizable licensing models
- Exhaustive set of assertions and coverage points with connectivity example for all the components
- Consistency of interface, installation, operation, and documentation across all our VIPs
- Provide complete solution and easy integration in IP and SoC environment

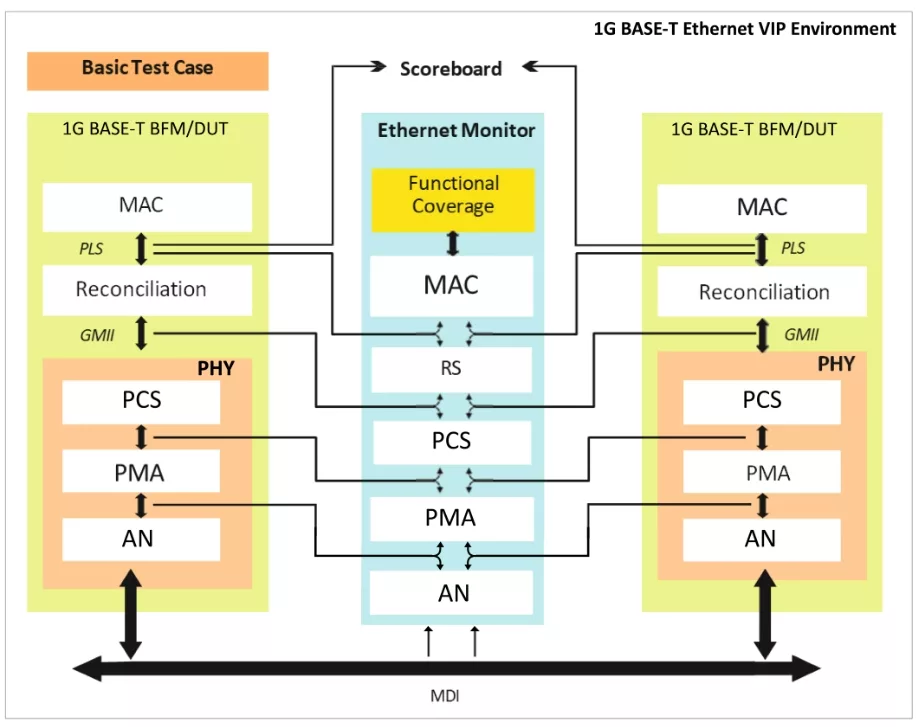

What’s Included?
- 1G Ethernet Master/Slave
- 1G Ethernet BFM/Agents for :
- MAC+RS Layer
- PCS+PMA Layer of type BASE-T
- AN Layer
- 1G Ethernet Layered Monitor and Scoreboard
- Integration Guide, User Manual and Release Notes
- Test Environment & Test Suite :
- Basic and Directed Protocol Tests
- Random Tests
- Error Scenario Tests
- Coverage Tests
- User Test Suite
Specifications
Identity
Part Number
1G BASE-T
Vendor
Truechip Solutions
Type
Verification IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
