Vendor: Digital Blocks, Inc. Category: Ethernet

UDP/IP – 100 GbE Protocol Hardware Stack

The DB-UDP-IP-100GbE-AMBA is a UDP/IP Hardware Stack / UDP Off-load Engine (UOE) with low latency, high-performance targeting 100…

Contact Provider Request Datasheet

Overview

The DB-UDP-IP-100GbE-AMBA is a UDP/IP Hardware Stack / UDP Off-load Engine (UOE) with low latency, high-performance targeting 100 GbE network links. The DB-UDP-IP is a Verilog SoC IP Core targeting Intel/Altera and Xilinx FPGAs and ASIC/ASSP devices.

The image below depicts the UDP/IP Hardware Stack SoC IP Core embedded within an Altera / Xilinx FPGA device, connected on one side to a 100 GbE Ethernet MAC, and on the other side to the user application within the FPGA (i.e. either the FPGA logic fabric or embedded host processor).

Key features

  • 100 GbE network links
  • Low latency, high-performance wire-line performance
  • Internet Protocol (IP) Packet Processor:
    • IP & ICMP (Internet Control Message Protocol) Protocol
    • Host IP address filter, IP header checksum check & generator, userselectable Maximum Transmission Unit (MTU), Unicast & MulticastPacket support
    • Compliance with IETF IPv4/IPv6 RFCs
  • User Datagram Protocol (UDP) Packet Processor:
    • Support for up to 256 UDP Ports
    • UDP header checksum check & generator
    • Compliance with IETF UDP RFCs
  • Address Resolution Protocol (ARP) Packet Processor (client/server) with 4-16 entry ARP cache
  • VLAN Support, DHCP, IGMP, Jumb Frames
  • Interface to Intel/Altera (Avalon-ST) & Xilinx & Synopsys 100G MAC
  • High Speed Data Interface to user Host Application:
    • 256-bit / 512-bit AXI4-Stream
  • Host set-up & control via Control & Status Registers and Interrupt Controller
    • 32-bit AXI4-Lite or APB or AHB
  • Pipeline, High Clock Rate, Low Latency architecture & design
  • Fully-synchronous, synthesizable RTL Verilog SoC IP core

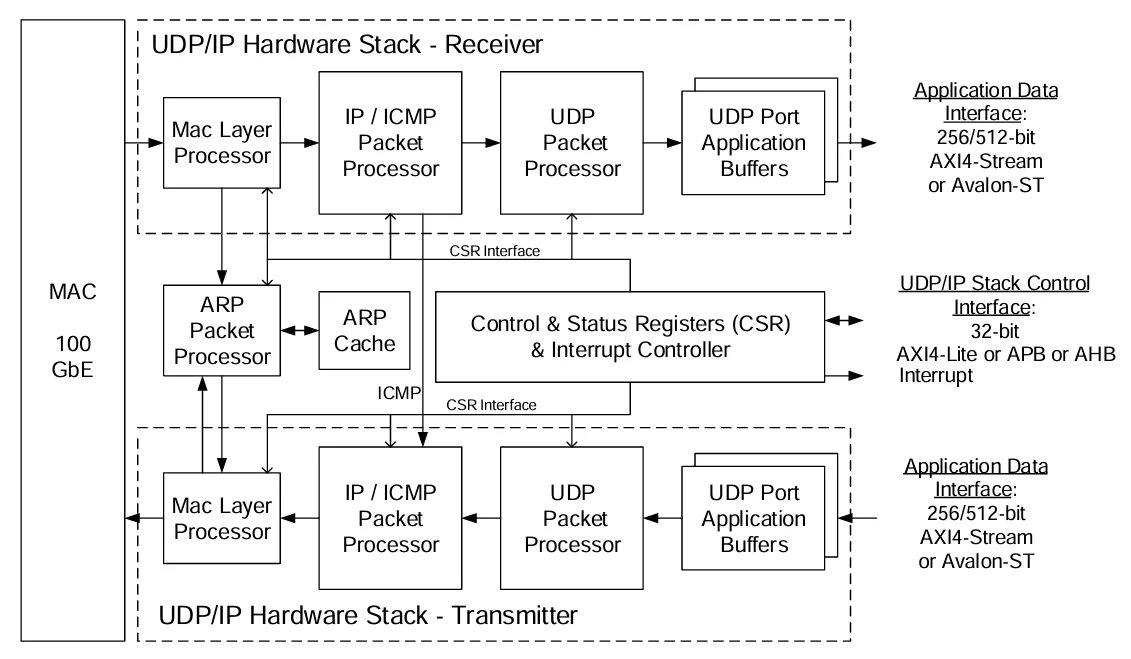

Block Diagram

DB-UDP-IP-100GbE block diagram

What’s Included?

  • Verilog RTL Source or technology-specific netlist.
  • Comprehensive testbench suite with expected results.
  • Synthesis scripts.
  • Installation & Implementation Guide.
  • Technical Reference Manual.

Specifications

Identity

Part Number
DB-UDP-IP-100GbE
Vendor
Digital Blocks, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Digital Blocks, Inc.
