32-bit Embedded RISC-V Functional Safety Processor

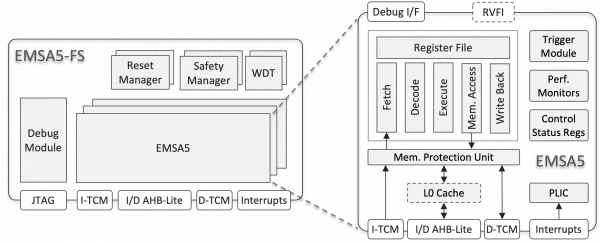

The EMSA5-FS is a processor core designed for functional safety. The fault-tolerant processor uses dual or triple instances of the EMSA5, an efficient 32-bit embedded processor IP core implementing the RISC-V Instruction Set Architecture (ISA).

The Harvard architecture EMSA5 processor implements a single-issue, in-order, 5-stage execution pipeline, supporting the RISC-V 32-bit base integer instruction set (RV32I), or the 32-bit base embedded instructions set (RV32E). EMSA5 can support machine and user privilege modes, and optionally the standard Multiply (M), Atomic Instructions (A), Compressed (C), Control and Status Register (Zicsr), and Instruction-Fence (Zifencei) RISC‐V extensions. With the addition of an optional Floating Point Unit (FPU), the EMSA5-FS can support the single-precision (F) and double precision (D) floating point extensions. A subset of the vector extension (V) is also optionally supported. The processor core uses two tightly-coupled memory (TCM) interfaces (one for data and one for instructions) and communicates with the system via a 32-bit AMBA ® AHB-lite bus and its interrupt lines. An optional four-ways set associative cache of configurable size can be attached to the AHB-lite bus.

Designed to meet the most stringent functional safety requirements, EMSA5-FS implements a memory protection unit, employs modular redundancy, uses error correction codes (ECC), and is delivered with sample reset and safety manager modules. Privileged operation modes provide a mechanism to isolate application user-mode processes from each other and from trusted code running in machine mode. The highly configurable memory protection unit enables memory partitioning, which provides protection by restricting access or specific types of access to memory and memory-mapped modules (e.g. peripherals). ECC protects the memories and buses and modular redundancy protects the internal processor modules. Finally, the safety manager provides logical and timing supervision and can be customized to meet the requirements of the end application.

Part of CAST’s family of processor cores, the EMSA5-FS processor core has been designed for easy reuse, has been rigorously verified, and is delivered with an ISO 26262 ASIL-D Ready certificate.

• Designed for Functional Safety
  • ISO 26262 ASIL-D Ready Design
  • Complete certification package includes FMEDA and SAM documents
  • Fail-safe features: Modular redundancy, ECC, reset and safety manager modules
  • Memory protection unit with up to 16 regions of configurable size
  • Versions:
    • EMSA5-FS-T (TMR),
    • EMSA5-FS-D  (DMR), and
    • EMSA5-FS-L (DMR in lockstep).
• Embedded RISC-V Processor
  • Single-issue, in-order, 5-stage pipeline
  • Harvard architecture with separate instruction and data TCMs and an optionally cached 32-bit AHB-Lite interface
  • RV32[I/E][M][C][Zicsr][Zifencei] ISA
    • 32 or 16 32-bit integer registers (16 with the optional E extension)
    • Optional Compressed (16 bit encoding) instructions (C extension)
    • Optional Multiply/Divide instructions (M extension)
  • User and Machine Privilege Modes
  • Sixteen interrupt lines, extendable with an external interrupt controller, and one Non-Maskable Interrupt (NMI) line
• Powerful Debug Features
  • Configurable Hardware Performance Monitor
  • Support for RISC-V External Debug Support Version 0.13.2 including a Configurable Trigger Module
  • Industry-standard JTAG Inter-face
• Easy Software Development and SoC Integration
  • Open-source Eclipse-based or commercially available IDEs
  • Exploits the wide ecosystem of RISC-V toolchains and libraries
  • Available FPGA development kit for rapid prototyping and evaluation
  • Optional off-the-shelf platforms integrate the EMSA5-FS core with bus fabric and typical microcontroller peripherals
  • On-request custom-tailored integrated platforms using the EMSA5-FS core and interconnect and peripheral cores
