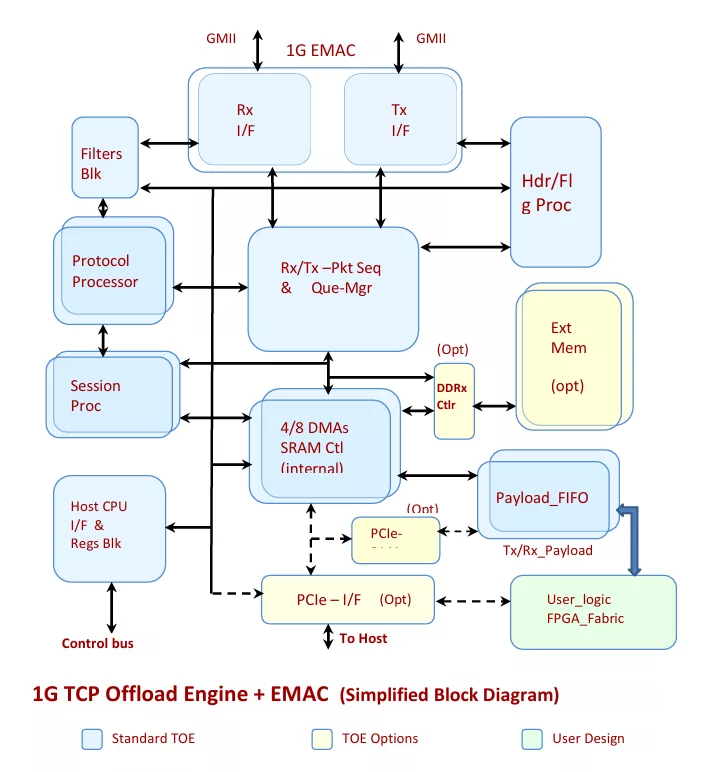

1G TCP Offload Engine TOE+MAC+Host_IF Ultra-Low Latency (STOE)

INT 1011 is the only SOC IP Core that implements a full 1G bit TCP Stack in Handcrafted, Ultra Low Latency and Very High Performance, Innovative, Flexible and Scalable architecture which can also be easily customized for end product differentiation. INT 2011 is the only SOC that integrates 1G TOE + 1 GEMAC + Host interfaces in the smallest logic footprint. It is highly flexible that is customizable for layer-3, layer 4-7 network infrastructure and network security systems applications. It is recommended for use in, among others, high performance Servers, NICs, SAN/NAS and data center equipment design applications. It provides key IP building blocks for very high performance 1-Giga bit Ethernet ASIC/ASSP/FPGAs.

INT 1011 has built in advanced architectural flexibility that provides capability for enterprises to differentiate their Network security and Network infrastructure appliances from others and customize them for their specific design application.

INT 2011 can process TCP/IP sessions as client/server in mixed session mode for Network equi1ment and in-line network security appliances, simultaneously, at 1-G-bit rate. This relieves the host CPU from costly TCP/IP software related session setup/tear down, data copying and maintenance tasks thereby delivering 8x to 15x TCP/IP network performance improvement when compared with TCP/IP software.

INT 1011 also implements IGMP V1/V1/V3 protocol processing in hardware across all sessions. Available as an option to save BRAM and logic resources.
