CTTE: An Open Dual-Protocol RISC-V Trace Encoder for N-Trace and E-Trace
By Alexander Weiss, Albert Schulz
Accemic Technologies GmbH, Germany
Abstract

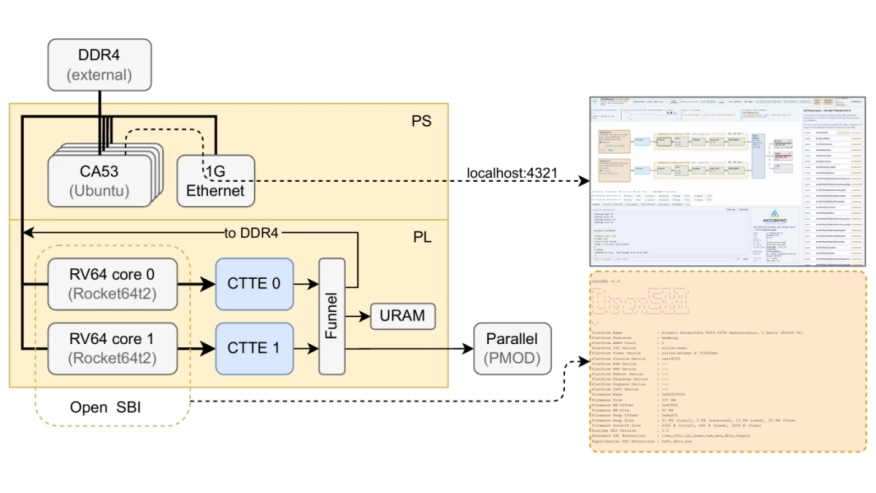

RISC-V standardizes two processor-trace formats, N-Trace and E-Trace, that share a hart-to-encoder instruction trace interface but differ in compression, messages, and framing. To the best of our knowledge, as of August 2026, no publicly available synthesizable N-Trace encoder and no published hardware encoder with both back ends behind a common front end have been reported. We present CTTE (CEDARtools.TraceEncoder), an open SystemVerilog encoder with a protocol-agnostic front end and selectable N-Trace/Nexus or E-Trace back ends. CTTE implements the N-Trace 1.0 program-trace message set in both instruction-trace modes, supports parameterized N-Trace address width, follows the RISC-V Trace Control Interface, and announces output-bandwidth loss before state re-convergence on the evaluated N-Trace path. CTTE has been integrated with six RISC-V cores from five suppliers. We evaluate 64-bit RISC-V systems booting Linux, including a two-hart SMP system, and demonstrate source-side process-context filtering that doubles observation depth for a target process in a fixed buffer. Verification combines instruction-exact round trips, RTL invariants, formal model checking, and machine-judged hardware campaigns with negative controls. With hardware and configuration held constant, workload choice changes trace cost from 0.21 to 4.90 bits per retired instruction. A common front end also enables controlled back-end comparisons while exposing synchronization and transport effects that must be separated from wire-format effects. RTL, register sources, tests, formal properties, decoder extensions, and build scripts are released under CERN-OHL-S-2.0; proprietary integration is available under an Accemic commercial license.
To read the full article, click here
