Xtensa Multicore LX8 Platform
32-bit RISC multiprocessor platform for the most demanding computational tasks
Overview
The increasing demands of machine learning algorithms and generative AI have heightened the computational and data throughput requirements for system-on-chip (SoC) designs. As a result, many designs now incorporate multiple processors to meet these needs. The Cadence Xtensa Multicore LX8 Platform addresses these challenges by bringing industry-leading processor extension capabilities to a multiprocessor environment, enabling SoC designers to achieve high performance while providing software developers with the user-friendly features of Cadence’s Xtensa Processor Platform.
The Xtensa Multicore LX8 allows users to create an SMP cluster with up to eight Xtensa LX8 processor cores. Access to shared data within this cluster is managed through hardware cache coherency, utilizing snoopable L1 data caches and a shared L2 memory system. With unmatched processor extension capabilities available through the Tensilica Instruction (TIE) language, SoC designers can fully optimize the multiprocessor cluster to meet specific application requirements. The ease of programming the multiprocessor cluster while using Tensilica software development tools enables SoC designers to achieve their performance requirements at minimal cost in power while greatly reducing their time to market.

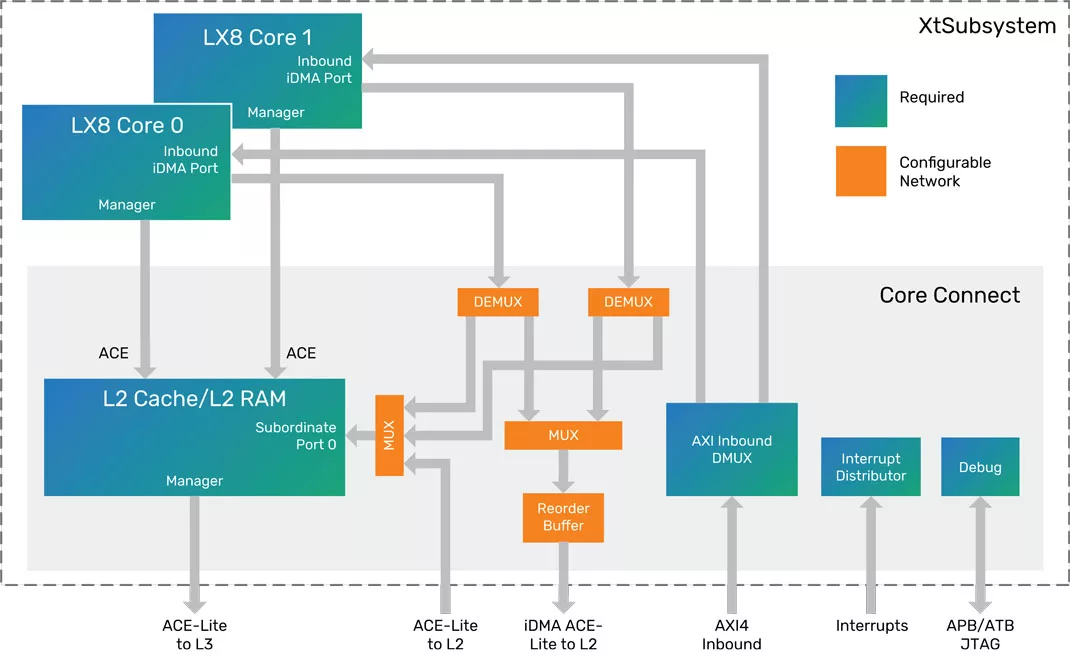

Block Diagram
Click to open fullscreen
Benefits
- Enhanced Computational and Data Throughput: Addresses the increasing demands of machine learning algorithms and generative AI by providing industry-leading processor extension capabilities in a multiprocessor environment. This enables SoC designers to achieve high performance while offering software developers user-friendly features.
- Symmetric Multiprocessor Cluster: Allows the creation of a symmetric multiprocessor (SMP) cluster with up to eight Xtensa LX8 processor cores. Access to shared data within this cluster is managed through hardware cache coherency, utilizing snoopable L1 data caches and a shared L2 memory system.
- Unmatched Processor Extension Capabilities: Using the TIE language, SoC designers can fully optimize the multiprocessor cluster to meet specific application requirements. This optimization helps achieve maximum performance with minimal energy consumption.
Specifications
Identity
Part Number
Xtensa Multicore LX8 Platform
Vendor
Cadence Design Systems, Inc.
Type
Silicon IP
Compute
CPU Architecture
Xtensa
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
