RTP/UDP/IP Protocol Hardware Stack – H.264/H.265 NAL Video Streams Packet Processing

The DB-RTP-UDP-IP-NAL Intellectual Property Core is an RTP/UDP/IP Protocol Hardware Stack with the following protocol processing …

Contact Provider Request Datasheet

Overview

The DB-RTP-UDP-IP-NAL Intellectual Property Core is an RTP/UDP/IP Protocol Hardware Stack with the following protocol processing units:

  •  RTP Packet Processor
  •  UDP Packet Processor
  •  IP Packet Processor
  •  MAC Frame Layer Processor

The image below  depicts the RTP/UDP/IP Protocol Hardware Stack SoC IP Core embedded within an FPGA/ASSP/ASIC device.

For RX (i.e., receiving packets from the network), there is optional packet reordering to absorb network jitter.

For both TX/RX, multiple NAL video streams supported. The DB-RTP-UDP-IP-NAL targets H.264 NAL Streams. See DB-RTP-UDP-IP-AV for raw, uncompressed RGB/YUV video streams.

Key features

  • RTP/UDP/IP Protocol Hardware Stack, targets H.264 NAL Streams. See DB RTP-UDP-IP-AV for raw, uncompressed RGB/YUV video streams
  • Internet Protocol (IP) Packet Processor:
    • IPv4 and IPv6 (optional) & ICMP (Internet Control Message Protocol) Protocol
    • IP header checksum generator (transmitter) & check (receiver), user selectable Maximum Transmission Unit (MTU), Unicast, Broadcast &  Multicast Packet support
    • Compliance with IETF IPv4/IPv6 RFCs
  • User Datagram Protocol (UDP) Packet Processor:
    • UDP header checksum generator (transmitter) & check (receiver) – programmable on/off
    • Compliance with IETF UDP RFCs
  • Real Time Transport Protocol (RTP) Packet Processor
    • Multiple TX/RX NAL streams supported
    • For RX, optional Packet reordering to absorb network jitter
    • Compliance with IETF RTP RFCs
  • Address Resolution Protocol (ARP) Packet Processor (client/server) with 4-16 entry ARP cache
  • High Speed Data Interface to user Host Application (typical clock rates):
    • 10/100/1000 MbE: 32-bit @ 2.5/25/125 MHz, AXI4-Stream or Avalon-ST
    • Contact Digital Blocks regarding 10 GbE higher network requirements
  • Host set-up & control via Control & Status Registers and Interrupt Controller
    • 32-bit @ user clock rate AXI4-Lite or Avalon-MM
    • Optional hardwired no-register setup
  • Pipeline, High Clock Rate, Low Latency architecture & design
  • Fully synchronous, synthesizable RTL Verilog SoC IP core


Block Diagram

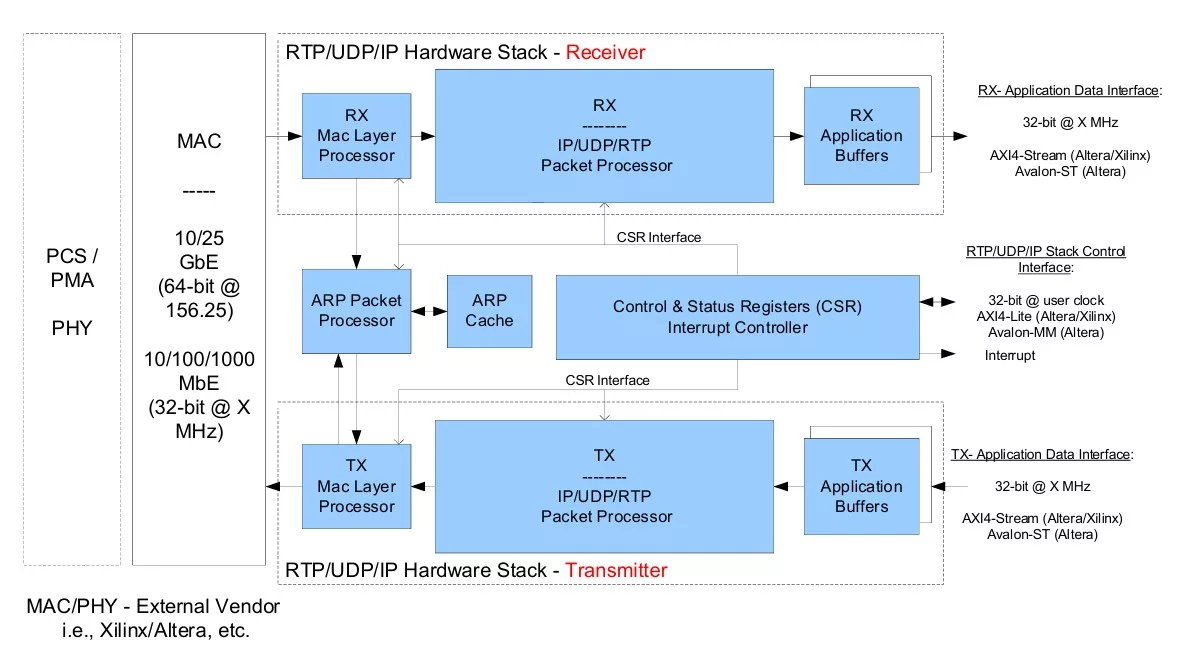

DB-RTP-UDP-IP-NAL block diagram

What’s Included?

  • Verilog RTL Source or technology-specific netlist.
  • Comprehensive testbench suite with expected results.
  • Synthesis scripts.
  • Installation & Implementation Guide.
  • Technical Reference Manual.

Specifications

Identity

Part Number
DB-RTP-UDP-IP-NAL
Vendor
Digital Blocks, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Digital Blocks, Inc.
