LPDDR5X PHY

MSquare's LPDDR5X/4X PHY is a transceiver physical layer IP interface solution designed for ASICs and SOCs.

Contact Provider Request Datasheet
Controller + PHY + 1 LPDDR5X View all specifications

Overview

MSquare's LPDDR5X/4X PHY is a transceiver physical layer IP interface solution designed for ASICs and SOCs. Compatible with the universal IP protocol DFI 5.0, it operates at data rates up to 8533Mbps with a 16-bit data width per channel. With flexible configuration options, the LPDDR5X/4X PHY supports a variety of mobile applications using LPDDR5X, LPDDR5, and LPDDR4X SDRAMs. Featuring a hybrid analog/digital architecture, MSquare's IP delivers low power consumption, compact footprint, and robust performance, making it well-suited for LPDDR5X/4X applications.



Key features

  • Compatible with JEDEC standards LPDDR4X , LPDDR5 and LPDDR5X SDRAMs
  • Supports for data transfer rate up to 8533Mbps
  • DFI 5.0 for PHY and controller interfaces
  • Supports both firmware-based training and hardware-based training
  • Supports multiple gears of DFS
  • High performance, low jitter DDR IO
  • Single Tap DFE for Channel Robustness
  • Supports 4 trained frequencies
  • User-customizable arbiter (scheduler)
  • Compliant with JEDEC standards JESD209-4D and JESD209-5B

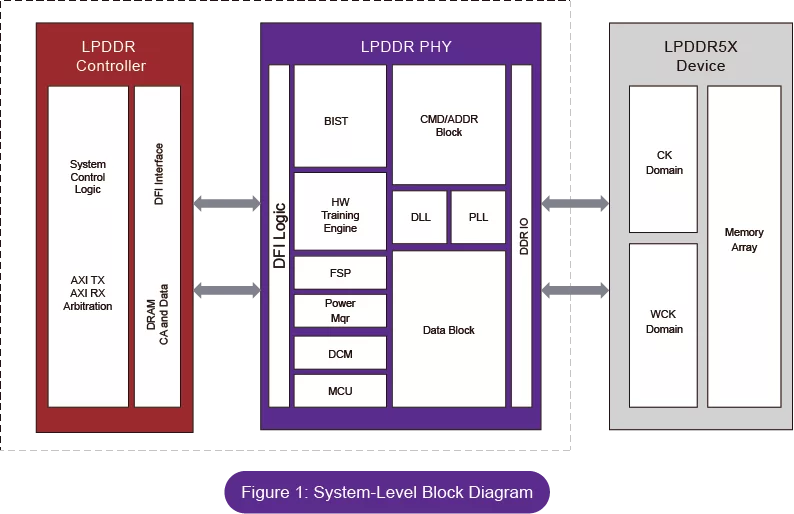

Block Diagram

LPDDR5X block diagram

Specifications

Identity

Part Number
LPDDR5X
Vendor
MSquare
Type
Silicon IP
Controller / PHY
Controller + PHY , PHY

Standards & Interfaces

Memory
LPDDR5X

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

MSquare
HQ: China
Contact MSquare
