LPDDR4X PHY

MSquare's LPDDR4X PHY is a transceiver physical layer IP interface solution designed for ASICs and SOCs.

Contact Provider Request Datasheet
Controller + PHY + 1 LPDDR4 View all specifications

Overview

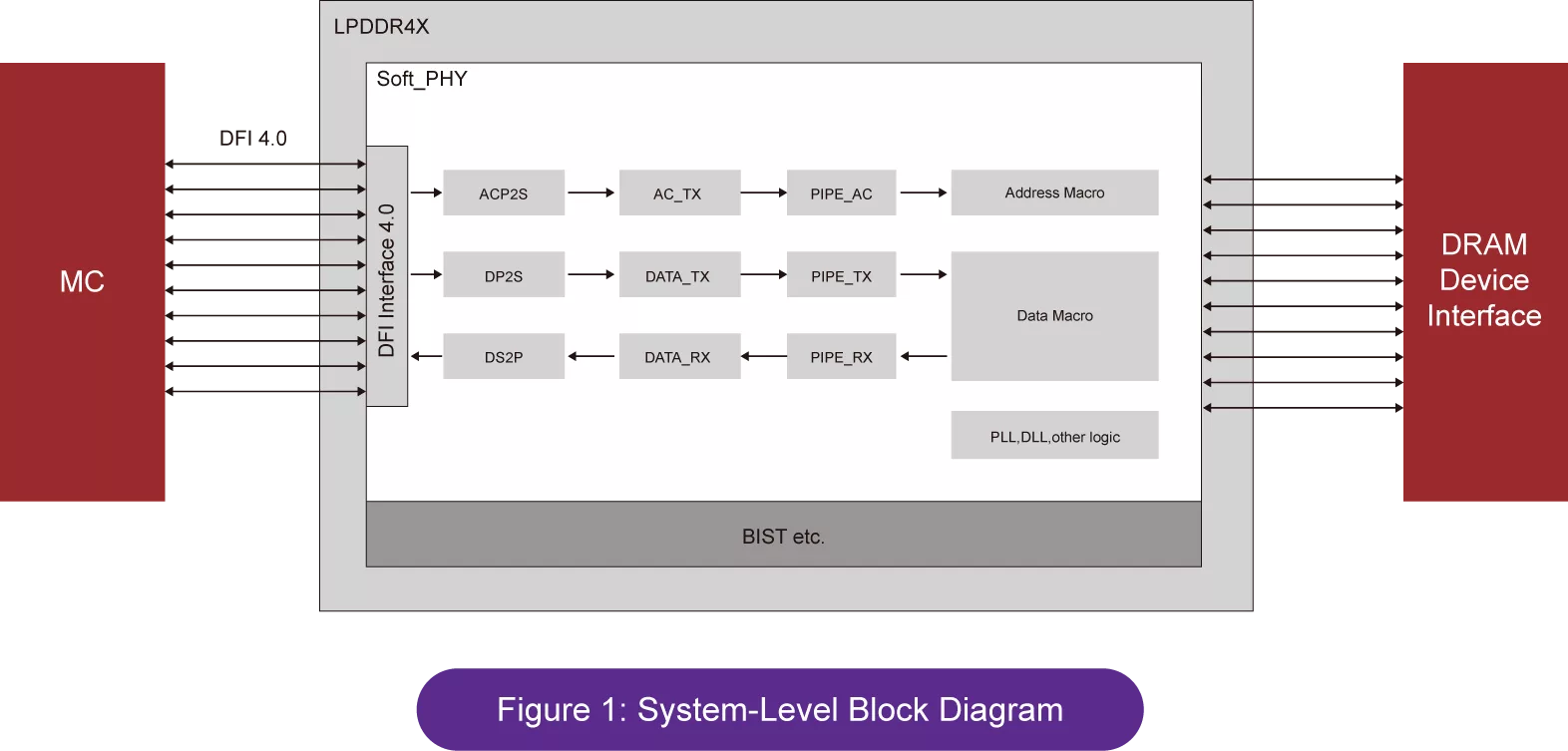

MSquare's LPDDR4X PHY is a transceiver physical layer IP interface solution designed for ASICs and SOCs. Compatible with the universal IP protocol DFI 4.0, it operates at a data rate of up to 4267Mbps with a 16-bit data width per channel. As depicted in Figure 1, the LPDDR4X PHY block diagram for system application includes a data and address transmit path, a receiver data path, a PLL block, and more. Featuring a hybrid analog/digital architecture, MSquare's IP delivers low power consumption, a compact footprint, and robust performance, making it well-suited for LPDDR4X applications.



Key features

  • Compatible with LPDDR4X, with a maximum rate up to 4267Mbps
  • Compliant with DFI 4.0 for PHY and control interfaces
  • Flexible channel architecture
  • Supports PHY-independent training mode using an embedded processor
  • Supports dual rank
  • DFS supports 4 trained frequencies
  • Supports BIST and loopback modes
  • Supports background tracking for PVT compensation
  • Integrated low-jitter PLL and DLL
  • Compliant with JEDEC standard JESD209-4C



Block Diagram

LPDDR4X block diagram

Specifications

Identity

Part Number
LPDDR4X
Vendor
MSquare
Type
Silicon IP
Controller / PHY
Controller + PHY , PHY

Standards & Interfaces

Memory
LPDDR4

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
