Low-Speed Ethernet Controller

Configurable MAC solutions for speeds from 10Gbps to 25Gbps

Contact Provider Request Datasheet

Overview

Cadence Ethernet controller IP family supports the latest Ethernet specifications and provides unmatched flexibility so you can easily configure and customize a controller to your specific needs for a broad range of applications, from automotive, consumer, and industrial to high-end servers and networking appliances.

Key features

  • High-performance DMA with advanced AXI offloading capabilities and descriptor caching, QoS, and IEEE1588
  • Time-Sensitive Networking/Audio-Video Bridging (TSN/AVB) functionality enables unified Ethernet communication of critical data without traffic congestion in shared networks
  • IEEE 802.3az Energy-Efficient Ethernet (EEE), VLAN, TCP/IP offload, and remote network monitoring (RMON)
  • Multiple client interfaces: AXI, AHB, with optional DMA support
  • MII, RMII, GMII, RGMII, USXGMII, and SGMII interface support
  • Enhanced active functional safety features

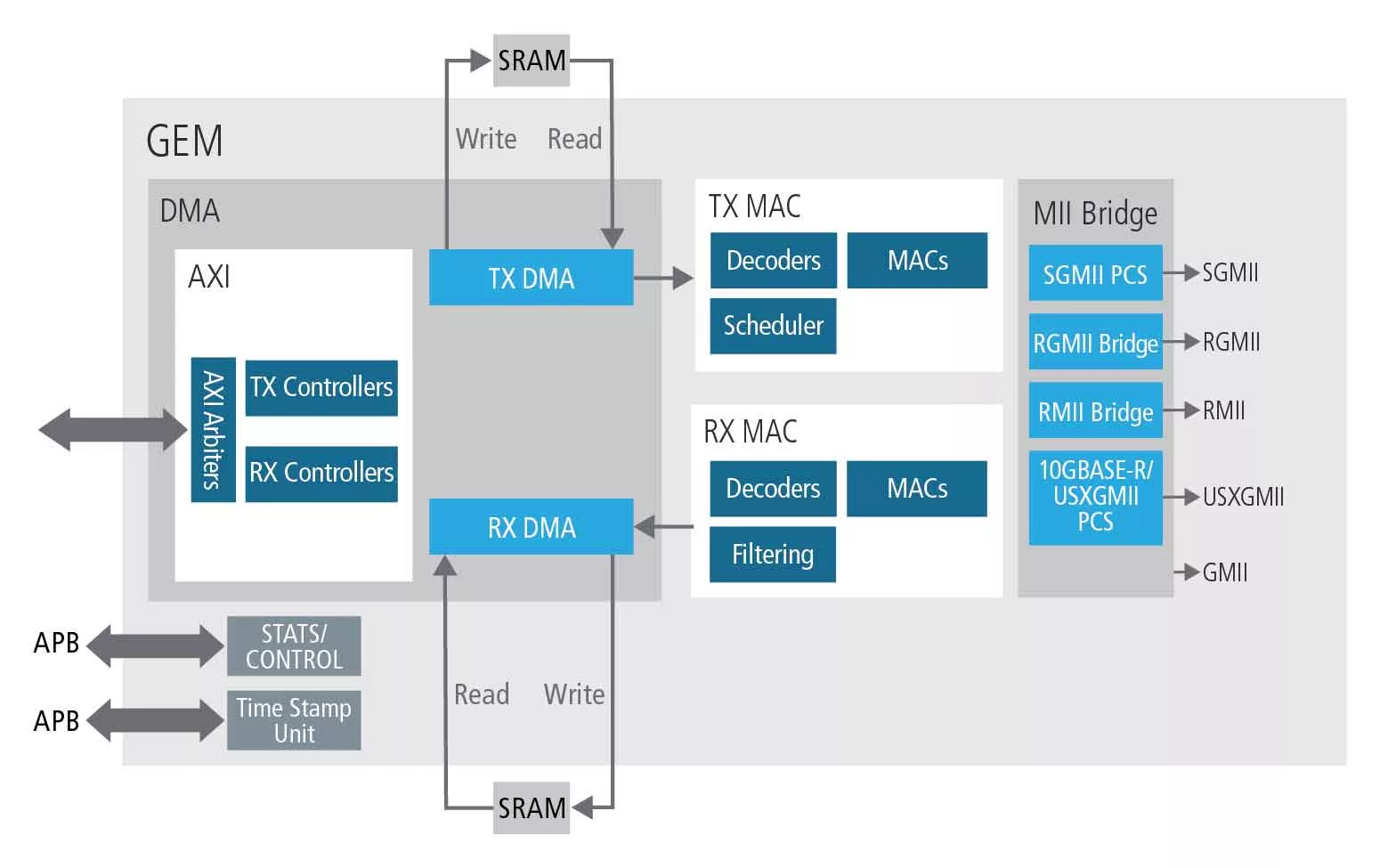

Block Diagram

Click to open fullscreen

Benefits

  • Designed for Performance: High-performance, highly featured DMA engine makes optimal use of pipelining capabilities of AXI system fabric to maintain highest line rates even in the presence of high system latencies
  • Standards Compliant: Compliant with IEEE 802.3 Standard, UNH tested, and ISO 26262 ASIL-B qualified
  • Designed by an Industry Leader: Cadence is an active contributor to the IEEE 802.3 standards working groups
  • Automotive Ready: Infotainment, digital cockpit, driver monitoring system, and ADAS applications are driving the need for high bandwidth in-vehicle networking solutions in automotive. The Cadence Controller for Automotive Ethernet is the ideal technology to address these requirements

Specifications

Identity

Part Number
Low-Speed Ethernet Controller
Vendor
Cadence Design Systems, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Cadence Design Systems, Inc.
HQ: USA
If you want to achieve silicon success, let Cadence help you choose the right IP solution and capture its full value in your SoC design. Cadence® IP solutions offer the combined advantages of a high-quality portfolio, an open platform, a modern IP factory approach to quality, and a strong ecosystem. Now you can tackle IP-to-SoC development in a system context, focus your internal effort on differentiation, and leverage multi-function cores to do more, faster. The Cadence IP Portfolio includes silicon-proven Tensilica® IP cores, analog PHY interfaces, standards-based IP cores, verification IP cores, and other solutions as well as customization services for current and emerging industry standards. The Cadence IP Factory provides you with an automated approach to the customization, delivery, and verification of SoC IP. As a result, you can spend more time on differentiation, with the assurance that you'll meet your performance, power, and area requirements. Choosing Cadence IP enables you to design with confidence because you have more freedom to innovate your SoCs with less risk and faster time to market.
