Vendor: Roa Logic BV Category: Bus Fabric

AHB-Lite General Purpose Memory Module

The Roa Logic AHB-Lite Memory IP is a fully parameterized soft IP implementing on-chip memory for access by an AHB-Lite based Mas…

Contact Provider Request Datasheet

Overview

The Roa Logic AHB-Lite Memory IP is a fully parameterized soft IP implementing on-chip memory for access by an AHB-Lite based Master. All signals defined in the AMBA 3 AHB-Lite v1.0 specifications are fully supported.

The IP supports a single AHB-Lite based host connection and enables address & data widths, memory depth & target technology to be specified via parameters. An option to register the memory output is also provided.

Key features

  • Full support for AMBA 3 AHB-Lite protocol
  • Fully parameterized
  • User-defined address and byte-aligned data widths supported
  • Configurable memory depth, limited only by target technology capability
  • Technology-specific memory cells instantiated automatically
  • Combinatorial or registered data output

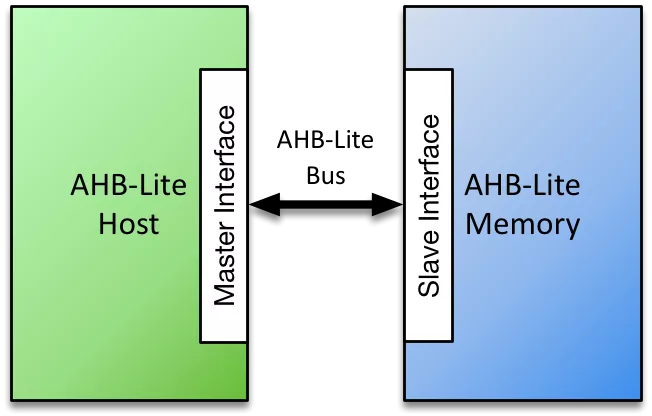

Block Diagram

AHB-Lite Memory block diagram

Benefits

  • Design to support any silicon technology

What’s Included?

  • Full Source Code
  • Testbenches
  • Compilation Scripts
  • Documentation

Specifications

Identity

Part Number
AHB-Lite Memory
Vendor
Roa Logic BV
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Roa Logic BV
HQ: The Netherlands
Contact Roa Logic BV
