Vendor: Synopsys, Inc. Category: Bus Fabric

Verification IP for AMBA AHB

Synopsys Verification IP (VIP) for Arm® AMBA® AHB™ provides a comprehensive set of protocol, methodology, verification, and produ…

Verification IP View all specifications

Overview

Synopsys Verification IP (VIP) for Arm® AMBA® AHB™ provides a comprehensive set of protocol, methodology, verification, and productivity features, enabling users to achieve accelerated verification closure of Arm AMBA based designs supporting AHB5, AHB3, AHB2, AHB-Lite, and AHB Multi Layer.

Key features

  • Complete protocol support for AHB5, AHB3, AHB2, AHB-Lite, and AHB Multi Layer
  • Includes primary, secondary, monitor
  • Configurable bus model
  • Backdoor access to AHB secondary memory
  • Ability to control wait states and secondary response types
  • Ability to control signal values during idle periods

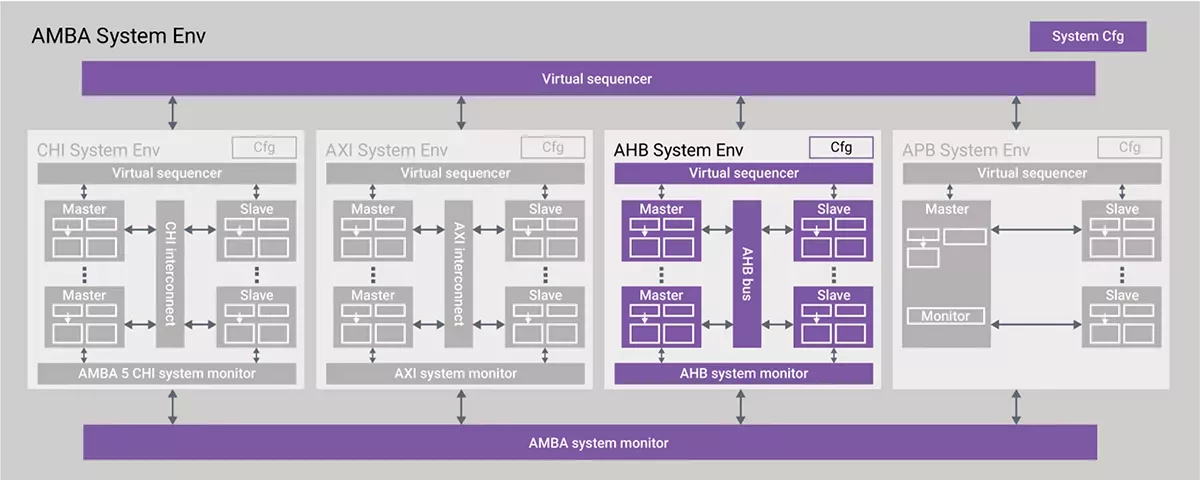

Block Diagram

Verification IP for AMBA AHB block diagram

Benefits

  • Native SystemVerilog/Verilog with UVM
  • Optional source code Test suite (EA)
  • Runs on all major simulators
  • Performance metrics for latency and throughput
  • Reference Verification Platform
  • Built-in port and system level checks for protocol, data integrity
  • Built-in verification plan and coverage
  • Verdi® protocol aware debug
  • Debug port for transaction tracking on waveforms

Specifications

Identity

Part Number
Verification IP for AMBA AHB
Vendor
Synopsys, Inc.
Type
Verification IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Synopsys, Inc.
HQ: USA
