REACH: Controller-Managed Long-Span ECC for HBM AI Inference

By Rui Xie ¹, Yunhua Fang ¹, Asad Ul Haq ¹, Linsen Ma ¹, Sanchari Sen ², Swagath Venkataramani ², Liu Liu ¹, Tong Zhang ^1
1 Rensselaer Polytechnic Institute, Troy, NY 12180 USA
² IBM T.J. Watson Research Center, Yorktown Heights, NY 10598 USA

Abstract

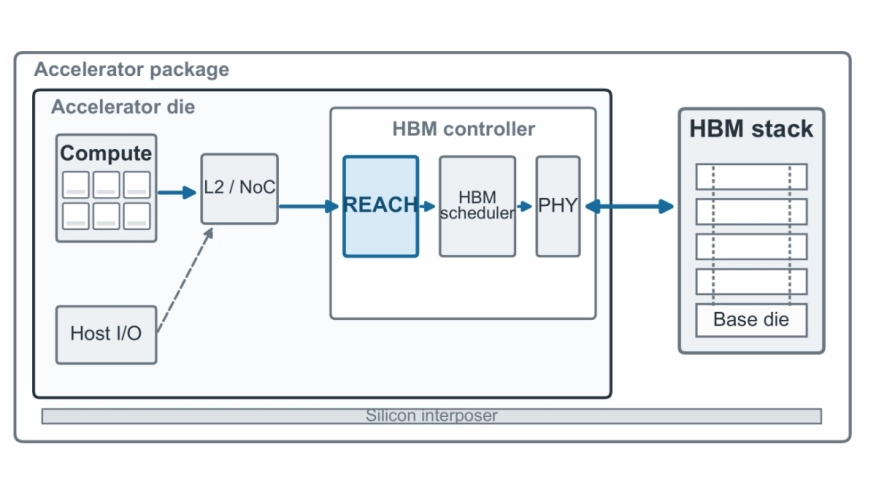

High-Bandwidth Memory (HBM) cost motivates stronger controller protection that can support a wider range of device error rates. Long-span error-correcting codes provide stronger protection at a comparable code rate, but a direct implementation couples small accesses to span-wide state and requires costly decoding at HBM bandwidth. Read-dominated LLM decode offers a favorable setting: sequential reads support span aggregation, while sparse writes limit parity-update traffic. This paper presents REACH, a controller microarchitecture that uses established inner codes to correct common errors and identify unresolved chunks, reserving a long outer code for known-erasure repair. Differential parity bounds write traffic, and a co-designed endpoint preserves 32 B transactions without an extra data burst. Ramulator2 sustains 1.88\,TB/s of application traffic at the highest error stress, while separate full-interface sizing supports a 2.69 TB/s application target using ASAP7-synthesized kernels. At this analytical target, REACH's nominal composition uses 55.8\% less controller area and 57.7% less modeled power than the evaluated mean-work direct-long design, showing the benefit of reserving long-span recovery for exceptional requests.

Index Terms—High-bandwidth memory (HBM), error correcting code (ECC), memory controller microarchitecture, Reed–Solomon codes, concatenated coding, erasure decoding, reliability, AI inference.
