Voltage Latched Comparator - X-FAB XT018

A high-speed voltage clocked comparator with rail- to-rail outputs and no hysteresis.

Contact Provider Request Datasheet
X-FAB 180nm XT018 Available on request View all specifications

Overview

A high-speed voltage clocked comparator with rail- to-rail outputs and no hysteresis. The typical propagation delay is 19ns while applying a differential input signal of 1mV over the offset voltage. The comparator operates with a supply voltage of 3.3V typical (VCC). The valid input voltage range is between 0.6V up to VCC. The comparator achieves an input offset voltage of ±1.04mV (3-sigma value). The circuit features an Enable signal turning on/off the comparator.

The comparator uses positive feedback (latch) to increase the comparison speed; thus, its operation consists of a reset phase and a regeneration (comparison) phase, which are controlled by the input clock (CLK). When CLK is ‘High’, the comparator is in the reset phase, and when it is ‘Low’, the comparator compares the voltages at INM and INP inputs and produces a 0 or VCC-level digital output voltage at the outputs DOUT and DOUTB. The CLK frequency is 2MHz. An output latch ensures that DOUT and DOUTB retain their previous values during reset phase.

The comparator features zero static current and low kickback noise. It requires a bias current of 89uA supplied from an external biasing circuit via the TAILBIAS input.

Technology: X-FAB XT018-0.18µm BCD-on-SOI CMOS

OPERATING CONDITIONS

Parameters Min. Typ. Max. Unit
Junction temperature range -40 27 150 ºC
Supply voltage on VCC with respect to ground GNDS 3.2 3.3 3.4 V

Table 1: Latched Comparator Operating Conditions

SPECIFICATION

Parameters Condition Min. Typ. Max. Unit
propagation delay (low to high / high to low) EN = H, Vin_diff = 1mV, CL=100fF, Vin_cm = 1.25V 14.4 19.0 25.4 ns
Input offset voltage (VOS) (3-sigma) EN = H -1.04   1.04 mV

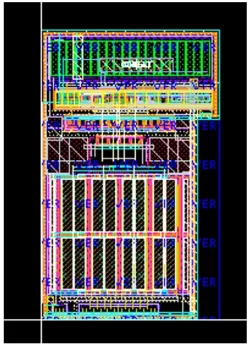

Comparator Area       0.0043 mm²

Table 2: Latched Comparator Specification

Block Diagram

Click to open fullscreen
1 / 2
Keyboard arrows: ← → • Enter: fullscreen • Esc: close

Silicon Options

Foundry Node Process Maturity
X-FAB 180nm XT018 Available on request

Specifications

Identity

Part Number
TS_CMP_19ns_X8
Vendor
TES Electronic Solutions
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact TES Electronic Solutions
