Vendor: Renesas Category: Comparator

Low Power Comparator on TSMC 40nm

This Comparator is low power supply voltage operation and low current consumption on T40ULP ESF3.

Contact Provider Request Datasheet
TSMC 40nm ULP Available on request View all specifications

Overview

This Comparator is low power supply voltage operation and low current consumption on T40ULP ESF3. The IP contains 2 cells of comparator and bias. A bias cell can be connected upto 3 comparators. Comparator has window mode and single mode as comparison mode, and Low power mode and high speed mode as current consumption mode. The single and low power mode can operate on less than 2uA current consumption.

Key features

  • Window Comparator  1ch
  • Available Comparator Mode / Window Mode
  • Available Low Power Mode / High Speed Mode
  • Supported high reference switching function (2ch) during window comparator operation
  • Supported low reference switching function (3ch) during window comparator operation
  • A BIAS can be connected to 3 CMPs.
  • Output load =< 0.5 [pF]

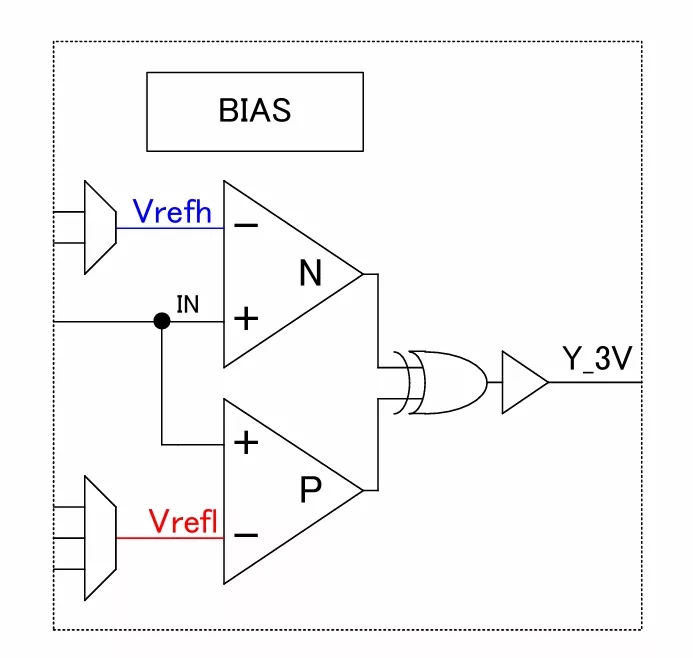

Block Diagram
