What is High-Speed Comparator on TSMC 40nm?
High-Speed Comparator on TSMC 40nm is a Comparator IP core from Renesas listed on Semi IP Hub. It is listed with support for tsmc Available on request.
Vendor:
Renesas
Category:
Comparator
High-Speed Comparator on TSMC 40nm
This Comparator is high speed, wide supply voltage range operation on T40ULP ESF3.
Overview
This Comparator is high speed, wide supply voltage range operation on T40ULP ESF3. Conversion time is 100ns at worst condition. The IP contains 3 cells of Comparator, Bias and Control. Bias can be connected upto 6 Comparators. The Comparator has input switches for both analog(plus) input and reference(minus) input.
Key features
- Comparator 1ch
- Supported Input channel switching function (4ch) during comparator operation
- Transfer gate switches of input selector are T-type for noise tolerance and current injection
- Output load =< 1 [pF]

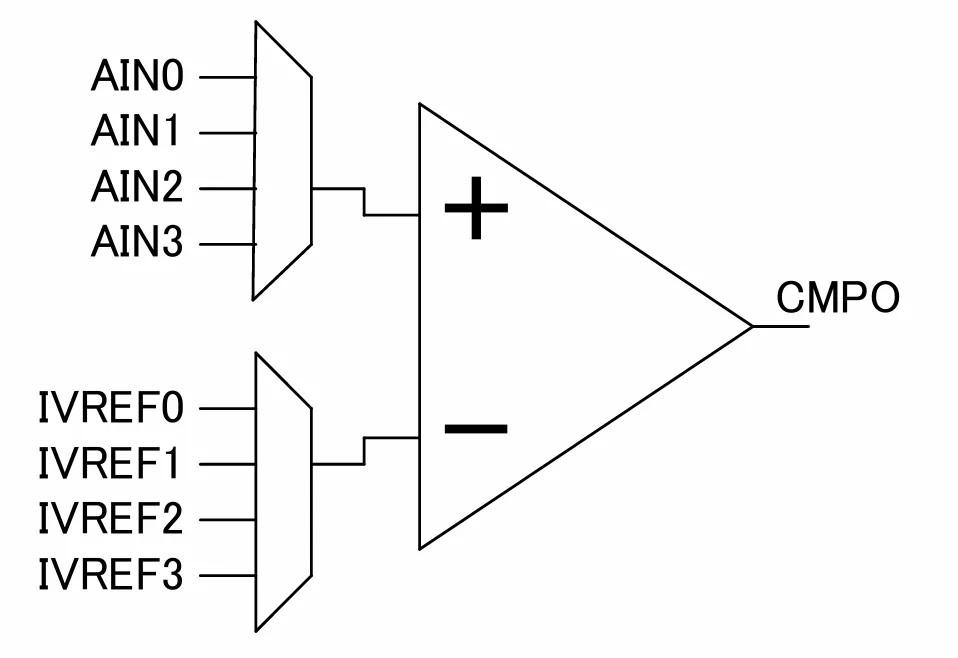

Block Diagram
Click to open fullscreen
1 /
3
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 40nm | ULP | Available on request |
Specifications
Identity
Part Number
High-Speed Comparator
Vendor
Renesas
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Japan
