Ultra Ethernet MAC & PCS 100G/200G/400G/800G

The Chip Interfaces Ultra Ethernet MAC & PCS IP core delivers a complete, silicon-agnostic implementation of the Ultra Ethernet Transport link layer, purpose built for the demanding bandwidth and latency requirements of AI training clusters, high-performance computing (HPC), and hyperscale data center fabrics. Compliant with the Ultra Ethernet Consortium (UEC) Specification v1.0 and the 25/50 Gigabit Ethernet Consortium Low Latency Reed-Solomon Forward Error Correction (LL-RS-FEC) specification v1.0, the core supports port configurations of           1-4x100G, 1-4x200G, 1-2x400G, and 1x800G , providing the flexibility to address the full range of backend scale-out network deployments.

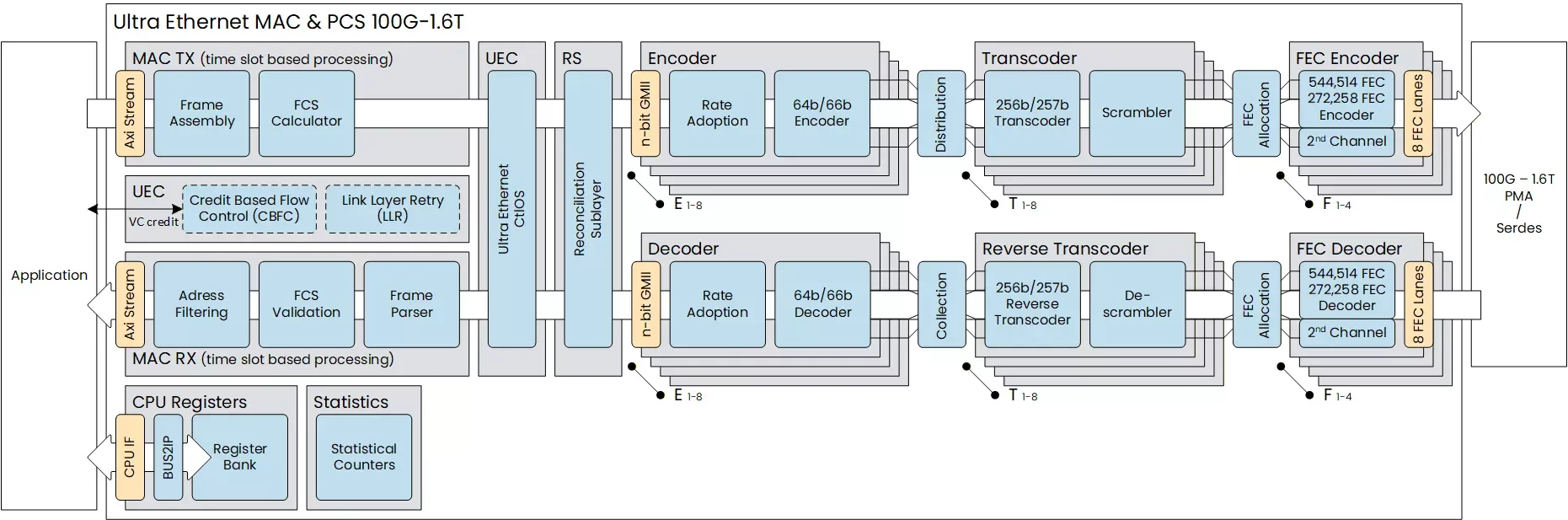

Combining an integrated (MAC), Physical Coding Sublayer (PCS), Link Layer Retry (LLR), and Credit-Based Flow Control (CBFC) into a single cohesive solution, the core provides a robust foundation for lossless, low-latency fabric operation. The LLR sublayer delivers single-link-RTT loss recovery, while CBFC provides lossless delivery across up to 32 virtual channels. Together, LLR and CBFC provide a robust foundation for the lossless, low-latency fabric operation that large scale collective communication workloads demand.

Designed in System Verilog for ASIC targets, the core is delivered with comprehensive documentation, a simulation environment, programming register specifications, SDC timing constraints, and dedicated engineering support enabling confident, accelerated tape-out.

The solution is delivered with comprehensive documentation, a simulation environment with test cases, programming register specifications, and full SDC.

Delivers Performance

• Supports Ultra Ethernet speeds from 100G to 800G (4x100G, 4x200G, 2x400G, 1x800G)
• Run-time configurable link topology via software
• Complete integrated MAC + PCS + LLR + CBFC solution in a single IP
• Compliant with Ultra Ethernet Consortium Specification v1.0

Highly Configurable

• RS(544,514) Regular FEC and RS(272,258) Low Latency FEC (Ethernet Technology Consortium LL-RS-FEC)
• Cut-through and Store-and-Forward operation modes
• Up to 32 Virtual Channels, with per-VC CBFC and VC credit pooling

Feature Rich

• UE Link Layer Retry (LLR) for single-link-RTT loss recovery
• UE Credit-Based Flow Control (CBFC) as an alternative to PFC
• UE Control Ordered Sets (CtlOS) natively integrated for LLR and CBFC signaling
• Priority-Based Flow Control (PFC) per IEEE 802.1Q-2022 Clause 36
• UE FEC Statistics for link quality monitoring and MTBPE estimation
• RMON Statistics, Jumbo Frame support, programmable MTU, FCS Check / Insertion

Easy to Use

• APB/AXI-4 Lite or BUS2IP control interface
• TDM channelized AXI Stream interface on client-side
• Easy interfacing to standard SerDes/PMA with lane reorder support

Silicon Agnostic

• Designed in SystemVerilog and targeting ASICs

Test Environment

Ultra Ethernet MAC & PCS 100G – 800G IP is Tested against a VIP model in UVM regression for full functional coverage

Silicon Agnostic

Designed in Verilog and targeting both ASICs and FPGAs

PHY Integration

PHY Integration support with additional hours or off the shelf PHY integration package for quick and efficient  deployment

Active Support

All support is actively provided by engineers directly

The IP Core can be delivered in Source code or Encrypted format. The following deliverables will be provided with the IP Core license:

• Solid documentation, including User Manual, Release Note and Quick Start Guide.
• Simulation Environment, including Simple Testbed, Test case, Test Script.
• Timing Constraints in Synopsys SDC format.
• Access to support system and direct support from Chip Interfaces Engineers.
• Test Report , Synopsys SGDC Files and Synopsys Spyglass/Siemens Questa/Verilater Lint, CDC and Waivers available on request
