Tensilica Xtensa LX Processor Platform
Versatile 32-bit RISC processor with configurable 5/7-stage pipeline addressing a wide range of application requirements ranging …
Overview
Versatile 32-bit RISC processor with configurable 5/7-stage pipeline addressing a wide range of application requirements ranging from a tiny cache-less controller to a high-performance DSP engine
The Cadence® Tensilica® Xtensa® LX processor platform offers the most versatility by enabling configuration of several pre-defined processor elements and extending the architecture by creating entirely new instructions and hardware execution units as well as custom memory paths and data I/O paths. The Xtensa LX7 processor can be used for a wide range of applications by configuring it into a tiny controller, a high-performance DSP engine, or anything in between.
Key features
- Configurable 5/7-stage pipeline
- Configurable instruction and data caches and local memories
- Extensibility with application-specific instructions, execution units, register files, and I/Os
- Multiple bus interface options including Arm® AMBA® 3 and 4 AXI, ACE-Lite, PIF, AHB-Lite
- IEEE 754-compliant single-precision and double-precision floating-point unit
- Low-latency Integrated DMA (iDMA) Controller
- Memory protection option including Region Protection, Memory Protection Unit (MPU), Memory Management Unit (MMU)
- Enhanced Functional Safety features and documentation to support ISO 26262 compliance
- Industry-standard debug features like JTAG and multi-core debug support

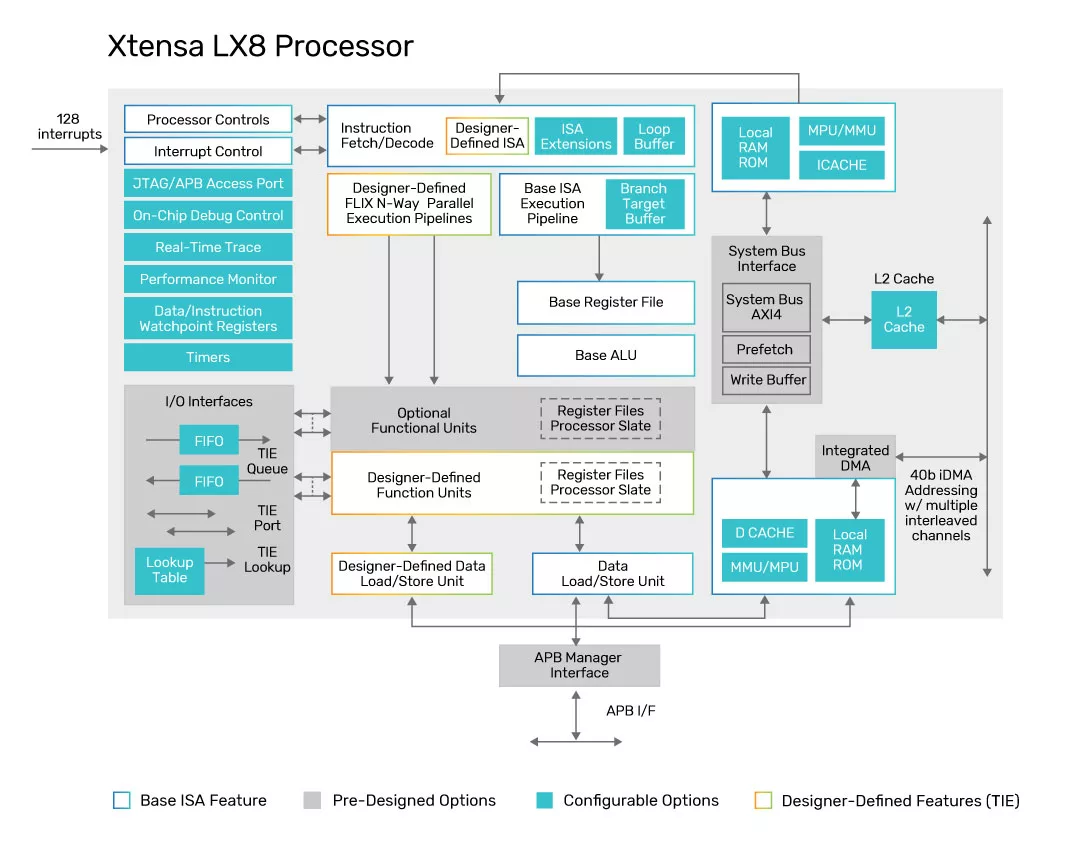

Block Diagram
Click to open fullscreen
Benefits
- Innovation and Differentiation: Create unique differentiated hardware tailored to specific application requirements for optimal performance and energy efficiency
- Future-Proof Your Design: Programming flexibility for OTA updates to enable innovation that results in frequent algorithm updates
- Unmatched Ease of Extensibility: Increased computational and I/O performance by executing multiple independent instructions in parallel and using wide I/O datapaths for virtually unlimited bandwidth
Specifications
Identity
Part Number
Tensilica Xtensa LX Processor Platform
Vendor
Cadence Design Systems, Inc.
Type
Silicon IP
Compute
CPU Architecture
Xtensa
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
