Vendor: Cadence Design Systems, Inc. Category: DSP Core

Single 512-bit SIMD DSP for Vision/Radar/Lidar/AI

Built on our latest Xtensa NX architecture and offers up to 2.18TOPS of performance The Cadence® Tensilica® Vision Q7 DSP deliver…

Overview

Vision DSPs for Imaging, Computer Vision, Radar, Lidar, and AI

The Cadence Tensilica Vision 331 DSP is a 512-bit SIMD DSP offering a single DSP for vision, radar, lidar, and AI. To address the increasing computational requirements for embedded vision, radar, lidar, and AI applications, the 512-bit Vision 331 DSP provides up to 4X greater FFT performance compared to the Vision 230 DSP, and due to the single DSP with support for both vision and radar, it also offers tremendous area, power, and cost saving.

Key features

The Vision 331 DSP has been designed to provide the best programmable solution for vision, radar, lidar, and AI. It offers a highly optimized instruction set with better performance and energy efficiency than GPUs or CPUs. With its programmability, it also offers the highest flexibility for an ever-changing future workload.

  • 1024/512b Load/Store capabilities
  • 512 8-bit MAC: 2X MAC capability versus Vision 130 DSPs
  • 8/16/32-bit fixed-point processing
  • Double-precision (FP64), single-precision (FP32), and half-precision (FP16) floating-point processing
  • Complex fixed and floating-point support
  • Option to boost FFT performance for 4D imaging radar
  • Optional performance boost for simultaneous localization and mapping (SLAM)
  • Ability to connect to Vision 4DR Accelerator to provide high-resolution imaging radar solution
  • 4-channel iDMA
  • User-defined instructions support
  • Built on NX Xtensa processor offering up to 1.5X frequency compared to Vision 130 DSP
  • ISO 26262 ready for automotive market

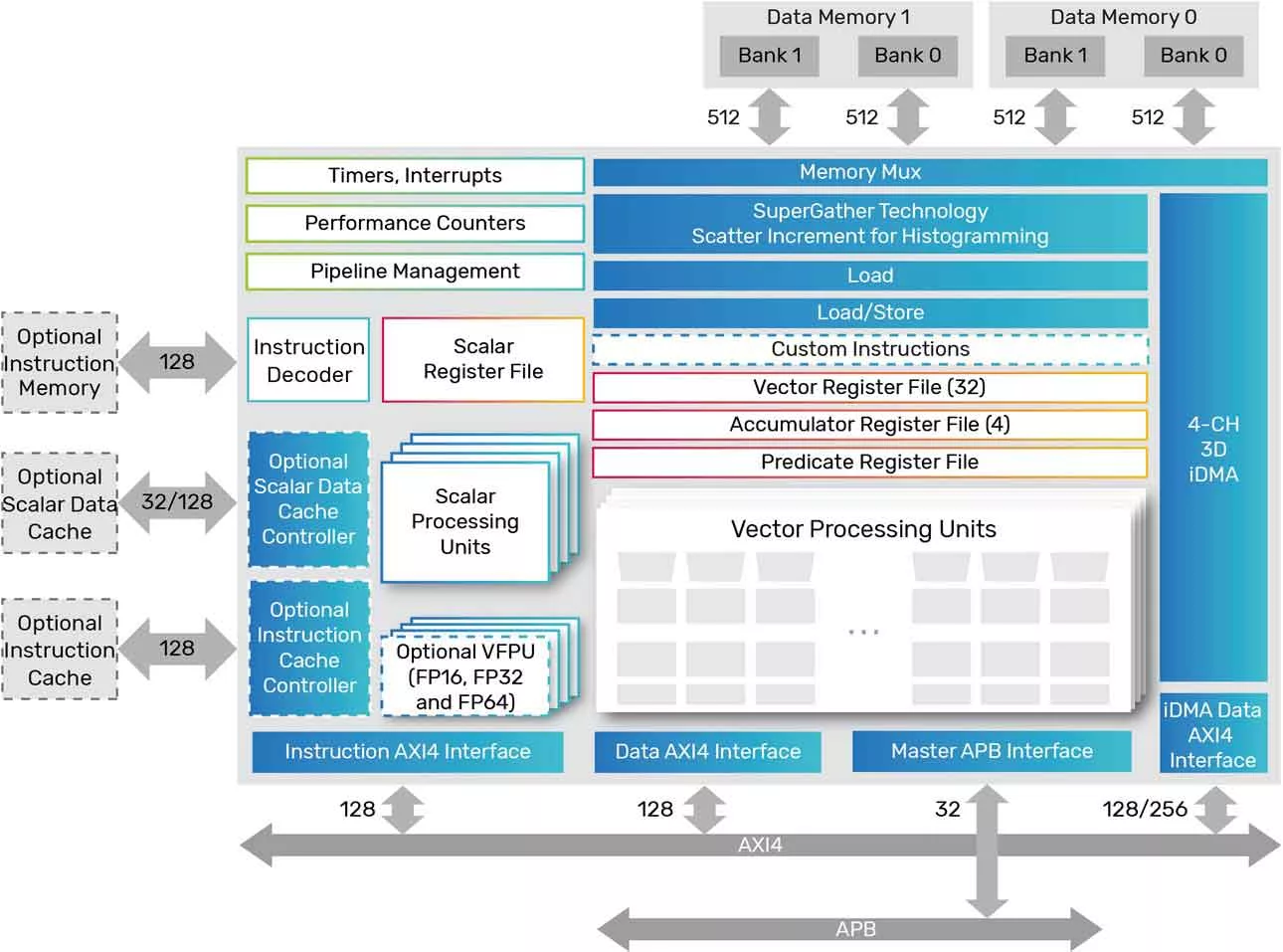

Block Diagram

Click to open fullscreen

Benefits

Area and Power Optimized

512-bit SIMD with higher energy efficiency compared to CPU/GPU single DSP for vision/radar/lidar/AI eliminates need for additional DSPs

Vision / Image / Radar / Lidar / Processing

Instructions set optimized for computer vision, image, radar, lidar, and AI processing applications

High Performance

512-bit SIMD offers the highest performance among the Vision DSP family and >1TOPS AI performance for object detection, image classification, and image segmentation

Specifications

Identity

Part Number
Vision 331 DSP
Vendor
Cadence Design Systems, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
